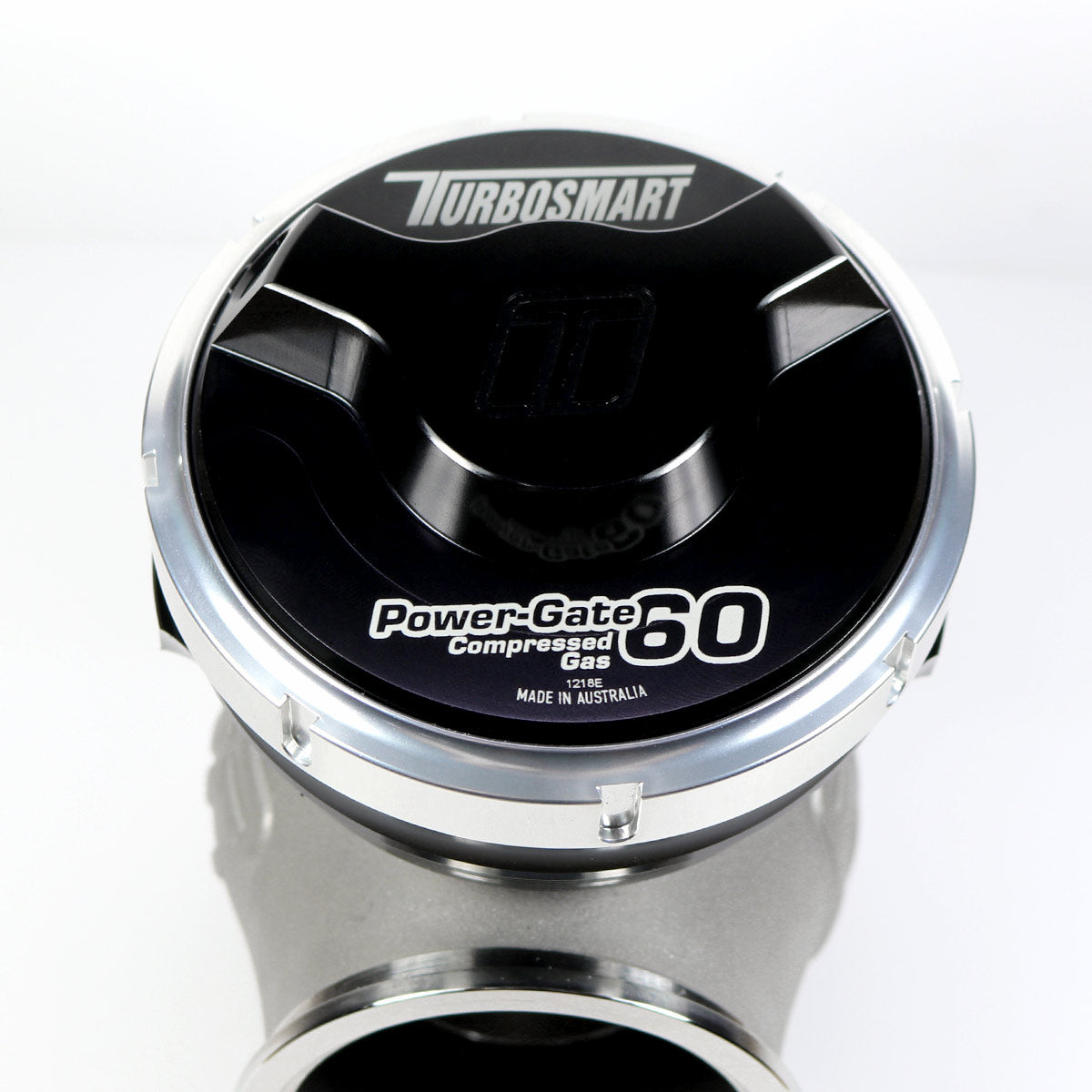

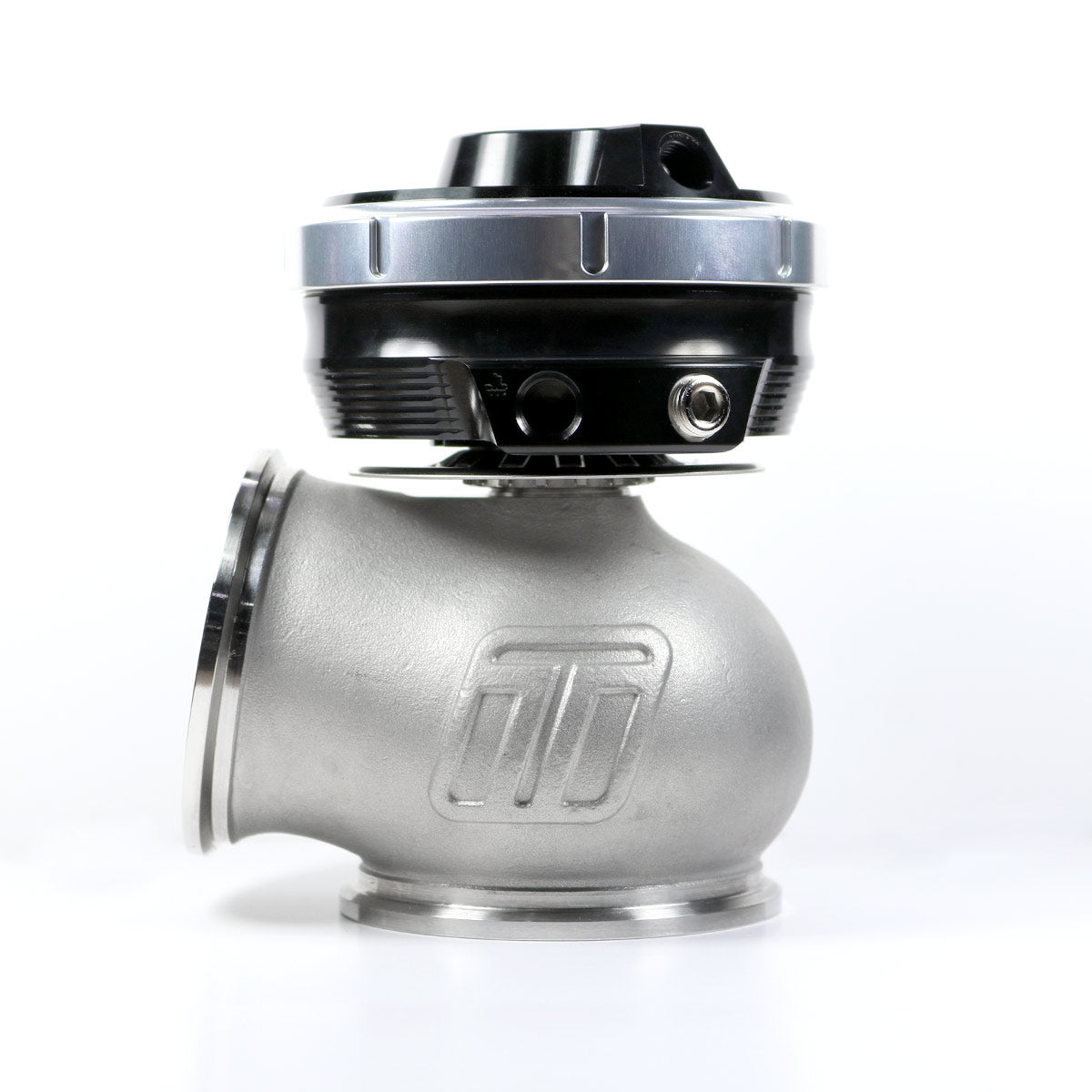

The Gen-V WG60 Power-Gate 60 Compressed Gas external wastegate is a cost effective, high performing 60mm external wastegate, the largest in the Gen-V range.
The Gen-V provides extensive user configurability, extended thermal performance, fatigue resistance and flow performance for optimum control and longevity.
A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature a unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs.

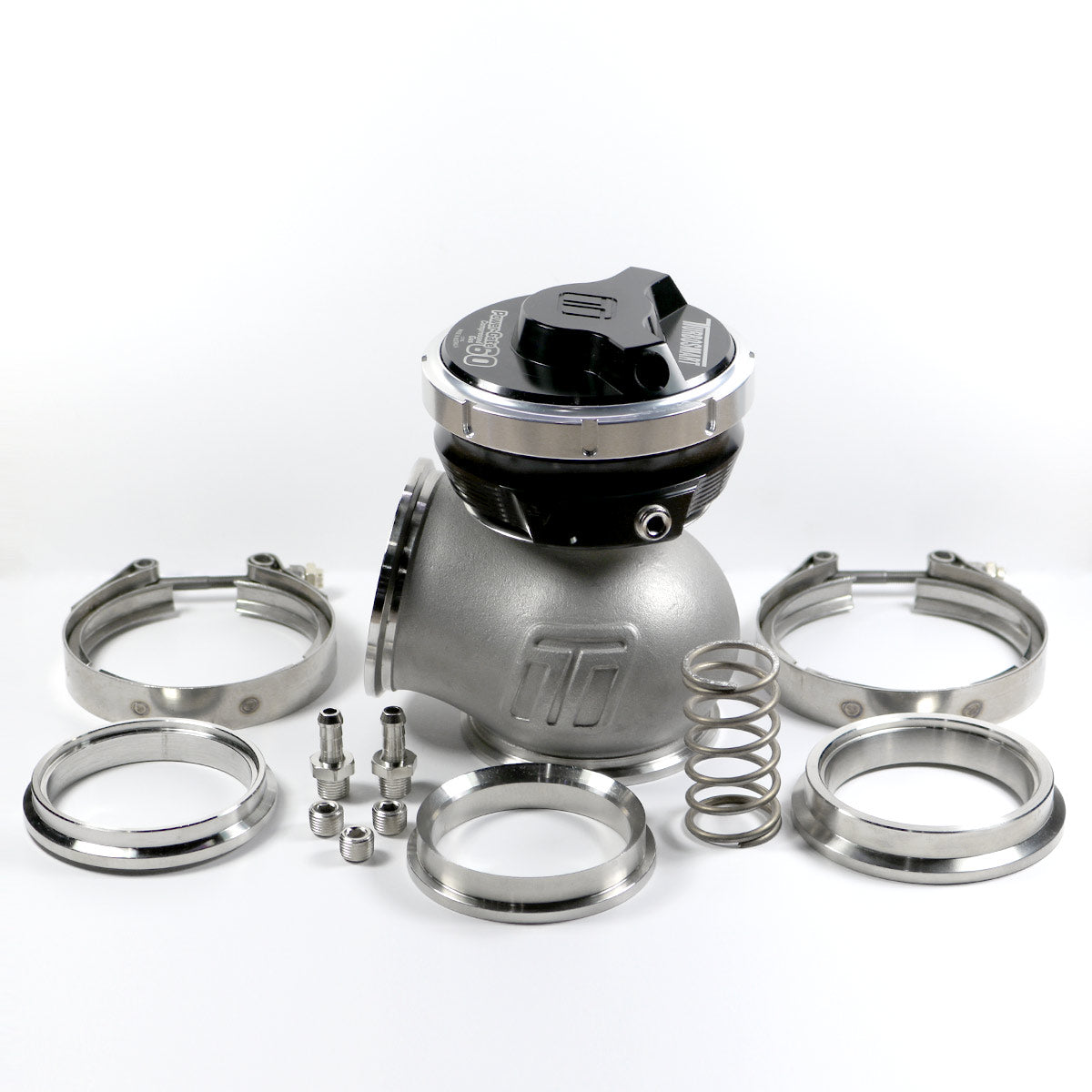

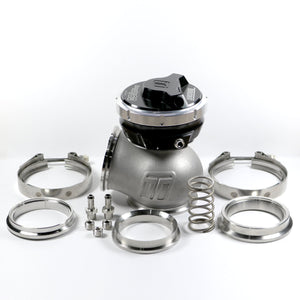

Included in the Box:
- Wastegate unit
- SS316 Valve seat
- Inlet V-Band
- Inlet SS304 weld flange
- Outlet V-Band
- Outlet SS304 weld flange

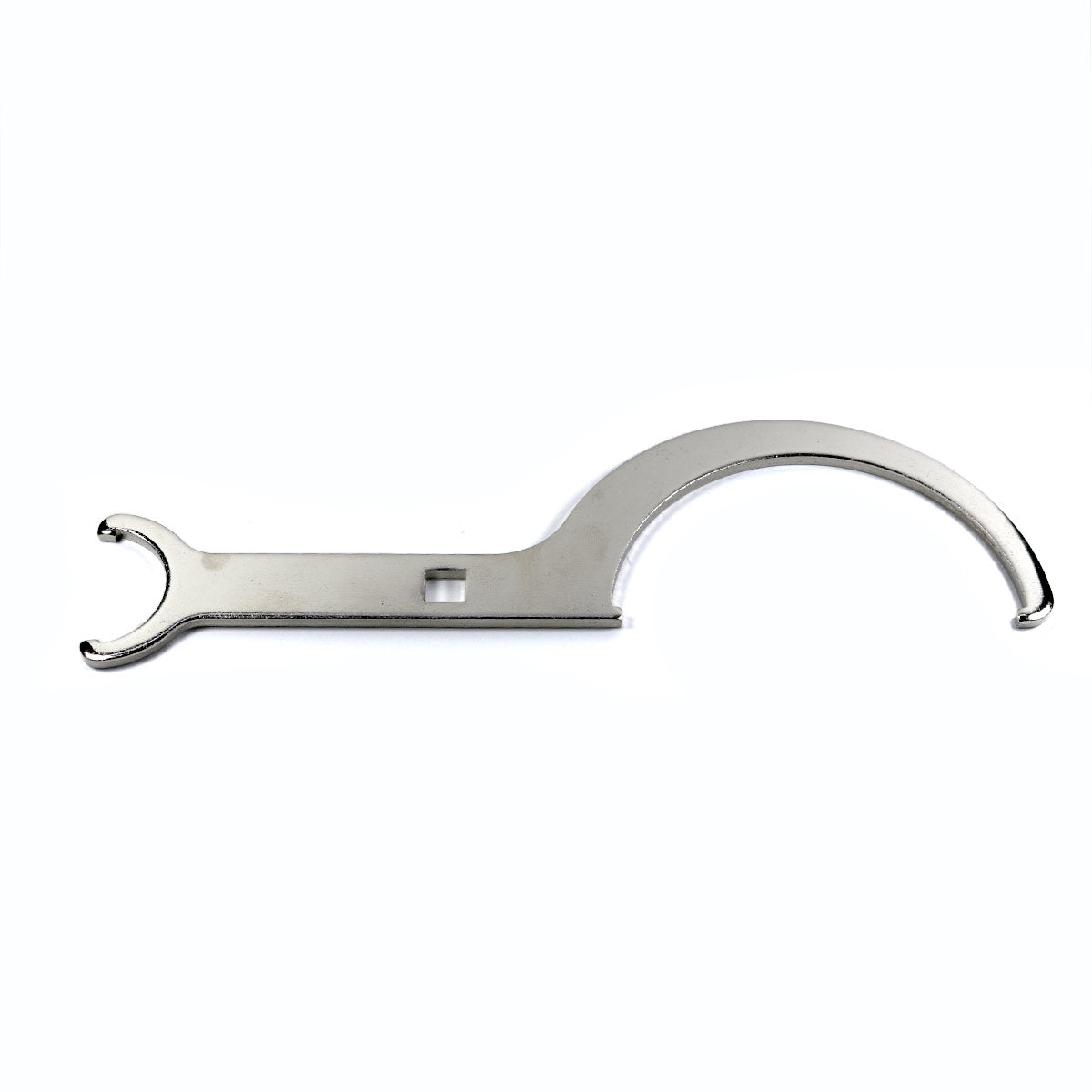

- Collar tool
- 3 & 5psi Springs (5psi spring pre-installed)
- 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
- Sticker
- Instruction card
