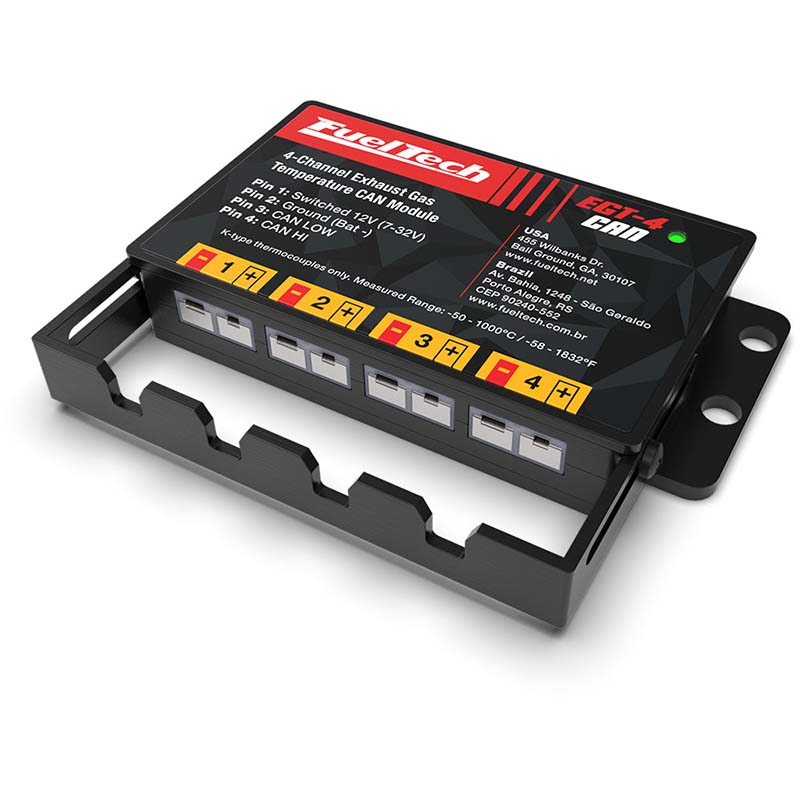

FUELTECH EGT-4 CAN W/O HARNESS

4 items left

FEATURES

  • The FuelTech EGT-4 CAN is compatible with any type K thermocouple (grounded junction or not).
  • 4 channel signal conditioner with CAN bus communication for PowerFT ECU's, can be used to read EGT's, CHT's, oil, air, water or any other temperature using a type K thermocouple.
  • Works as an input expander for PowerFT ECU's, freeing up 4 white input channels to be used for other purposes.
  • With the possibility to use up to 4 EGT-4 modules in the same installation, as much as 16 different channels will be available for all sorts of data acquisition.
  • Compatible with PowerFT ECU's (FT450, FT550, FT600, FT500LITE and FT 550LITE).



TECH DESCRIPTION

  • Inputs: 4 type K thermocouple inputs
  • Outputs: 1 CAN
  • Dimensions:
    • Product EGT-4 CAN : 4.33 x 2.28 x 0.7 in
    • EGT-4 CAN Packaging: 8.78 x 6.38 x 2.36 in
  • Weight:
    • Product EGT-4 CAN : 4.87 oz
    • EGT-4 CAN Packaging without harness 78.75 in: 12.13 oz
  • Contents of packaging:
    • 1 EGT-4 CAN
    • 1 Installation and operation manual
  • Warranty:
    • Worldwide: 1 year
