FUELTECH FT600 EFI SYSTEM

$ 2,790.00

Description
Specifications
Downloads
Videos

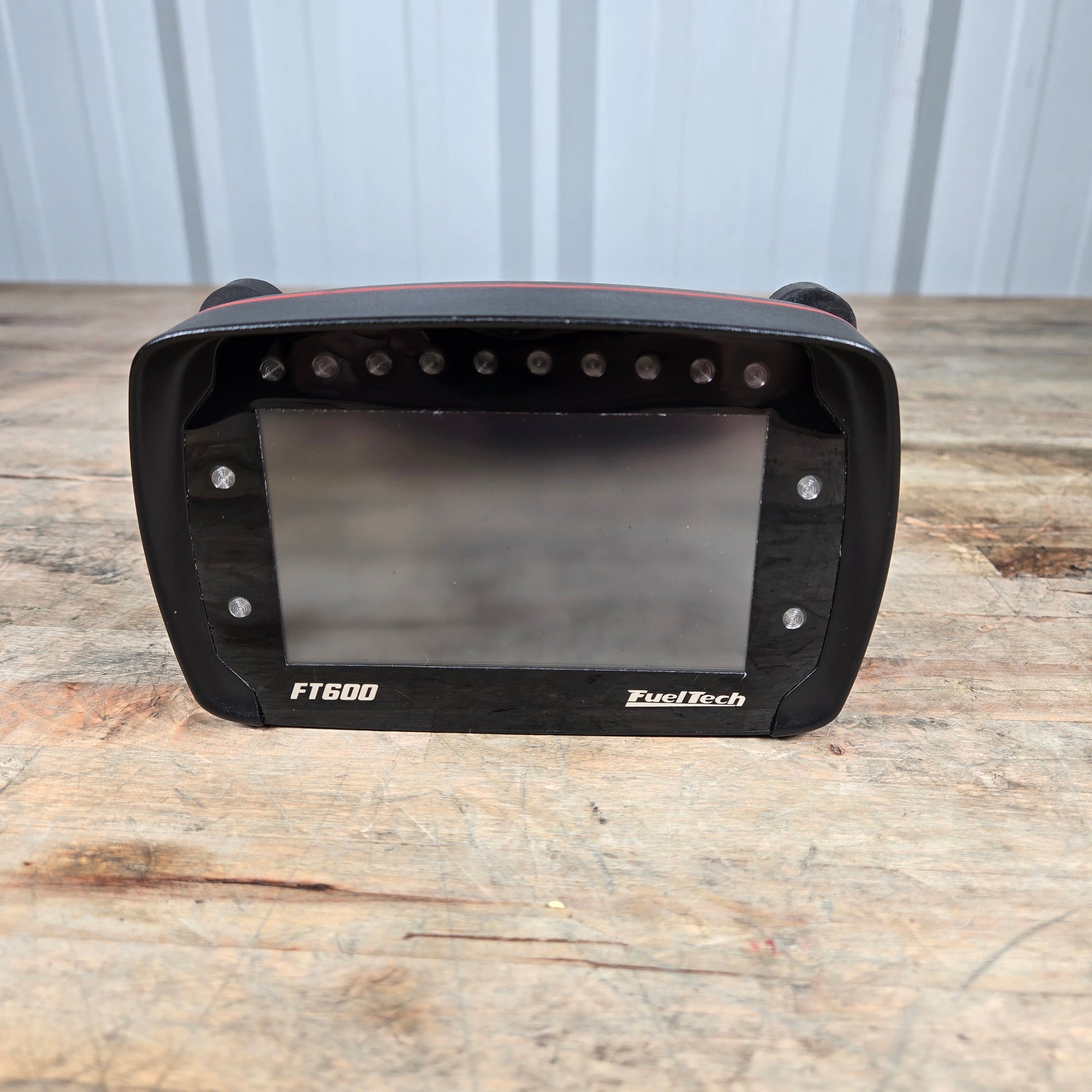

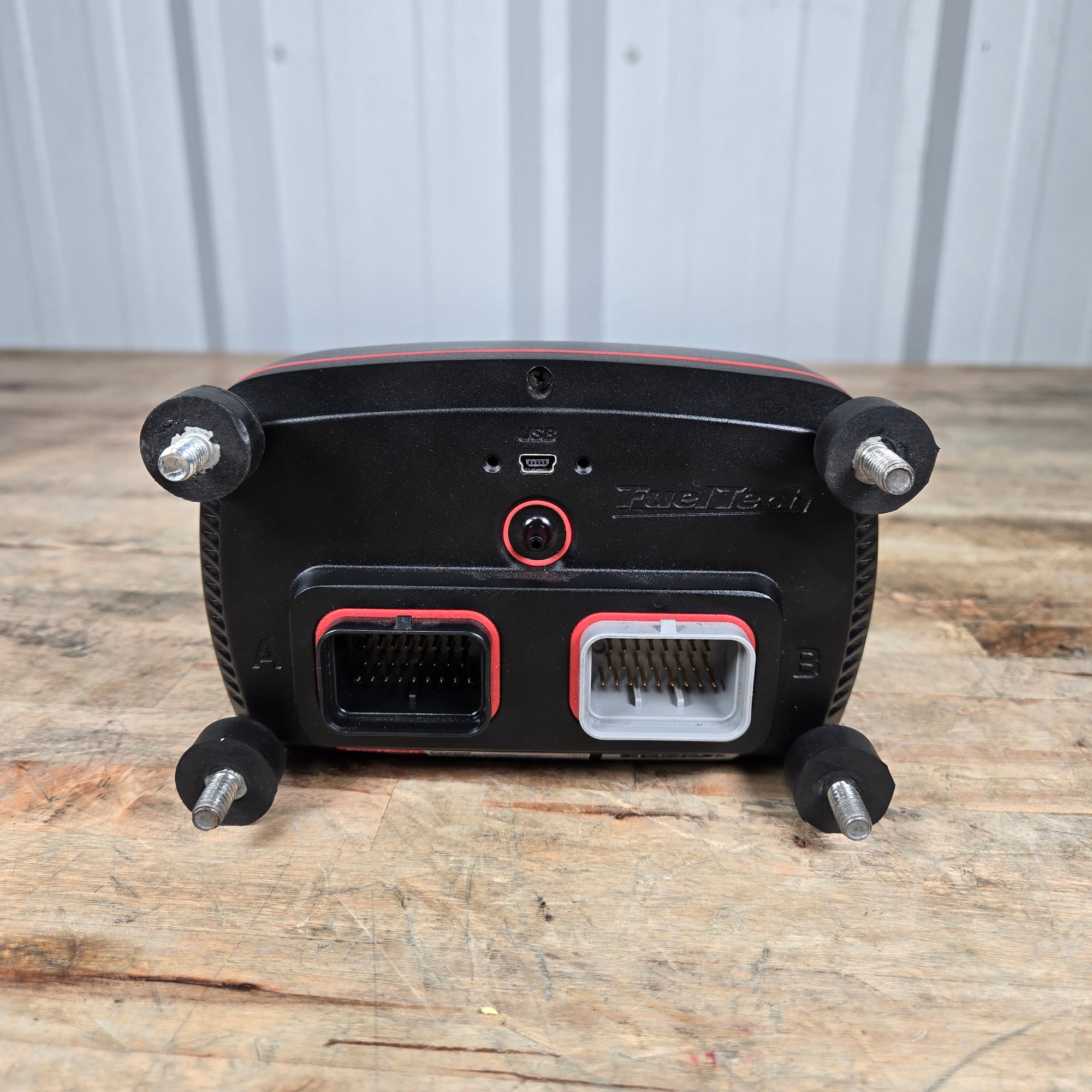

FuelTech FT600 is the perfect association between the ECU and the dashboard, making it the world’s most complete solution presenting both features combined. The FT600 has a new and exclusive extremely high quality aluminum shell, which is also waterproof. Its design includes an upper flap that reduces glare and houses 10 LED lights that are color and intensity adjustable, suitable for progressive shift light. There are also 4 more LED lights on the side of the ECU that are adjustable for diagnose, alerts and current status of any sensor. The product presents an anti-glare TFT touchscreen display. It embodies a redesigned dashboard exclusively developed to grant the driver an easier viewing experience. The screen enables map adjustments directly on the ECU, without the need to use a parallel computer.

The FT600 is able to manage sequential injection and ignition on engines from 1 up to 12 cylinders (or up to 4 rotors). It comes with an option for simplified maps that allow making the initial adjustments easier or 3D maps for extremely fine applications. The new ECU presents individual cylinder injection and ignition trim and exclusive features that help on the first engine start. Containing an advanced and efficient closed loop fuel control, the FT600 translates all safety the engine requires.

Developed on the Power FT platform, already praised for the FT500, the FT600 presents new features such as the new SUPERSEAL automotive connectors that add up to 68 pins (20 sensor inputs e 32 outputs), accelerometer and gyroscope, 2 CAN doors, and the GearController. The last feature enables the direct connection with the strain gage sensor on the shifter, bringing new possibilities for more efficient engine gearshift cuts.

The FT600 also presents a pack of beloved racing functions used in Brazil and in the world, such as time based launch features, the BoostController, Pro-Nitrous packaged and an advanced internal datalogger, also used to assist with all the different vehicle’s details.

The FT600 uses the same FTManager software, with all resources and existing functions. It is also compatible with all existing features and FT500 maps. You can open, edit and save maps through an interactive interface that is easy to use.
Specifications

• Otto cycle engine control for 1, 2, 3, 4, 5, 6, 8, 10 and 12 cylinders
• Wankel engine control (rotary) for 2, 3 and 4 rotors
• Full sequential ignition control, semi-sequential and multipoint control
• Ignition control through trigger wheel or distributor
• Full sequential ignition or wasted spark
• Closed loop injection through oxygen sensor (wide band lambda sensor)1
• SUPERSEAL automotive connectors
• Electronic throttle body Control (Drive-By-Wire)
• Ignition timing and actuator based Idle control (throttle body, step motor, or PWM valve)
• Real-time adjustable maps on the screen and on the FTManager software.

Inputs

• Differential input for RPM signal
• Differential input for cam sync signal
• 20 input channels which are completely adjustable – digital and analogic (temperature, pressure, speed and position sensors, TPS, external MAP, buttons, keys, etc.)
• 2 inputs with a high gain preamplifier usually used with a strain gage sensor
• Adjustable sensor reading scale
• Speed sensor and integrated gyroscope
• Internal MAP sensor of 7 bar (1 bar vacuum and 6 bar positive pressure)
• 1 USB port for computer and FuelTech software connection
• 2 CAN ports for FuelTech FTCAN 2.0 or FTCAN 1.0 (communication with FuelTech WB-O2 Nano, FuelTech EGT-8 CAN, Racepak IQ3, VNET, AiM, etc).

Outputs

• 32 general-purpose outputs: (all of which can be used for general accessories as fuel pump, thermatic fans, valves, injectors, solenoids, etc.)
• 16 open collector outputs: recommended for high impedance injectors (up to 4 injectors per output) – it is possible to set up to 32 injectors using external FuelTech Peak and Hold ECU
• 8 open collector outputs with a 5V current source of: recommended for ignition control
• 8 PUSH-PULL or HALF BRIDGE outputs: suitable for ignition, step motor control, electronic throttle body and to activate loads by 12V instead of ground.

Dashboard/ on-board computer

• Screen dashboard which displays different sizes and styles to be used with any existing equipment or sensor
• Upper tab with 10 LED lights, colored RGB and adjustable progressive shift light
• 4 RGB LED side lights which can be triggered by 3 different combined settings
• Diagnosis dashboard with real-time information of all inputs, outputs, CAN and Status Events.

Injection controls

• Full sequential injection for up to 24 outputs
• Closed loop fuel control through O2 sensor (wide band sensor)1
• 2 injection banks (Bank A and bank B)
• Primary map though MAP, TPS or RPM
• Advanced 3D primary map with up to 32x32 cells (completely adjustable map index and size)
• Simplified 2D map with up to 1x32 cells by MAP or TPS and RPM compensation of up to 1x32 cells (completely adjustable map index and size)
• Injection time resolution of 0,001ms
• Acceleration fuel enrichment and decay adjustment
• Individual cylinder trim setting by MAP or RPM
• Injector compensation through:
-Engine temperature
-Air temperature
-Battery tension (individual per bank)
-TPS or MAP
-Starting engine map with the engine temperature
-Prime pulse table
-Post start enrichment
-Gear based fuel compensation
-Gear shift fuel compensation
-Fuel injection angle table
-Injectors deadtime compensation by battery voltage

1 An external wide band lambda sensor conditioner is required – FuelTech WB O2 Nano, Alcohol-O2, WBO2 Datalogger, etc.);

Ignition Controls

• Sequential ignition for up to 12 cylinders
• Main map by MAP, TPS or RPM;
• Advanced 3D primary map with up to 32x32 cells (completely adjustable map index and size)
• Simplified 2D map with up to 1x32 cells per MAP or TPS and RPM compensation of up to 1x32 cells (completely adjustable map index and size)
• Injection angle resolution of 0,01°
• Individual cylinder injection settings
• Ignition timing compensation by air temperature
• Ignition timing compensation by engine temperature
• Gear based timing compensation
• Gear shift timing compensation

Internal Datalogger

• Multiple session recording (files) logs up to 256 channels
• Simplified mode with sample rate of 25, 50, 100 or 200Hz
• Advanced mode allows individual settings for the sample rate with 1, 5, 25, 50, 100 or 200Hz
• Automatic activation by RPM, through the screen or by external button
• Data storage for up to 2h50min (24 channels at 25Hz)
• FTManager Datalogger Software for viewing and comparing logs

Drag Racing Features

• Burnout mode, 2-step, 3-step
• Ignition timing map for drag Racing features
• 2-step activation by speed, boost, MAP or clutch position
• Time based RPM limiter by timing retard or ignition cut
• Time based wheel speed or driveshaft RPM control with timing retard or ignition cut
• Time-based ignition timing compensation
• Time-based fuel compensation
• Pro-Nitrous setting for up to 6 stages, with activation control, fuel enrichment and ignition timing maps
• Gear shift output
• Time based output
• Line lock brake output
• Staging control
• Wheelie Control

Secondary features

• Integrated GearController : ignition cut for clutchless gear shiftings using a strain gage sensor on the shifter
• Integrated BoostController: wastegate valve pressure control
• Idle speed control by timing, step motor, PWM valve or electronic throttle body
• Deceleration fuel cutoff
• Control of up to two thermatic fans through engine temperature or air conditioning
• Air conditioning control
• Fuel pump control – with 6s prime
• Variable Valve Timing (VTEC) control
• Progressive nitrous control with fuel enrichment and timing retard
• Generic duty cycle – PWM control
• Boost activated output
• Different options for gear detection: RPM drop, analogic sensor, pulse, speed and gear ratio, by gear shift output or GearController

Protection and Alerts

• RPM limiter by fuel or ignition cut
• Shift light with sound and dashboard alert and/or external shift light
• Configurable safe mode options (RPM limit or engine shutoff):
-High or low exhaust gas temperature (EGT), O2 closed loop limit, over boost, over rev, engine temperature, duty cycle, oil pressure, fuel pressure and differential fuel pressure.

General Features

• Display brightness adjustment
• LED lights brightness adjustment
• Night and day mode selection by external switch and through the menu
• Buzzer intensity adjustment for the interface and sound alerts
• Memory for saving up to 5 different maps
• User and tuner protection password
• PC communication through mini USB cable
• Operation temperature: from -4 F to +158 F

Dimensions

• Product FT600 EFI: 5.86 x 3.7 x 2.42 in
• FT600 packaging: 12.2 x 8.86 x 3.33 in
• Shipping box: 13 x 9.45 x 5.9 in

Weight

• Product FT600 EFI: 20.74 oz
• FT600 EFI packaging without harness: 61.44 oz
• FT600 EFI packaging with a 10 ft harness: 117.25 oz
• Shipping Weight “FT600 without harness”: 71.85 oz
• Shipping Weight “FT600 with a 10 ft harness”: 127.7 oz
• Product Weight “FT600 10 ft harness”: 55.8 oz

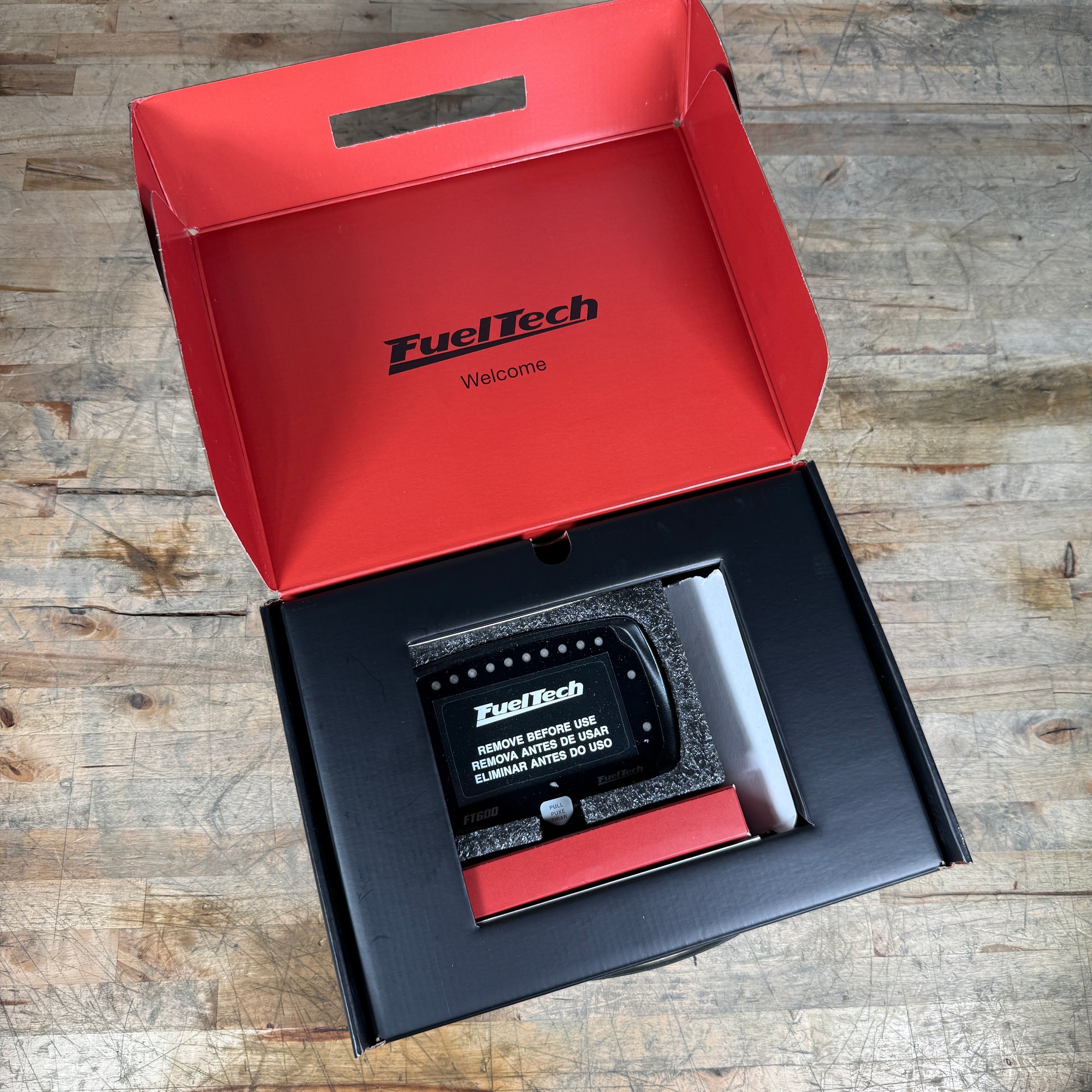

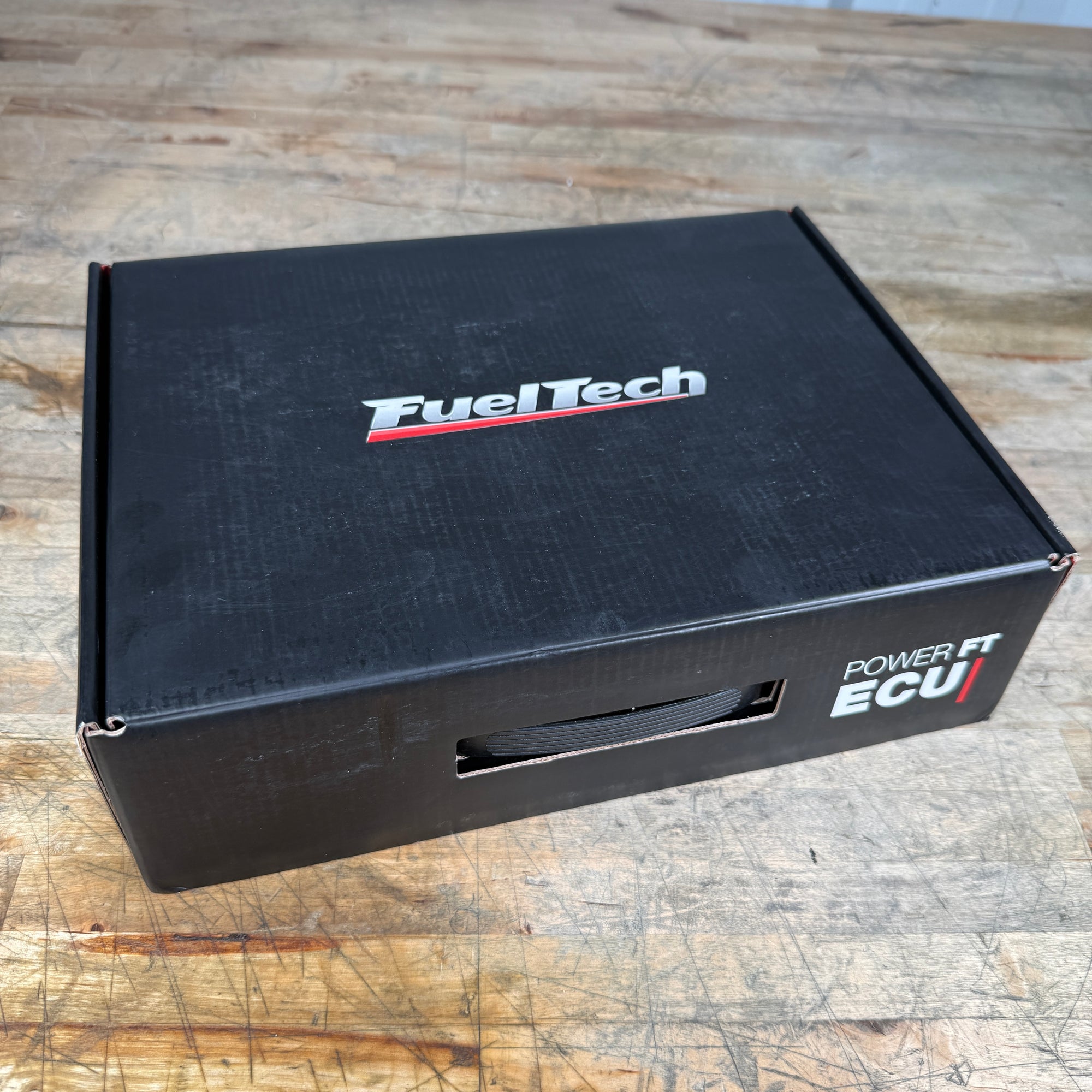

Contents of packaging

• 1 FT600 EFI
• 1 10ft electrical harness for installation (optional)
• 1 operation and installation guide
• 1 mounting kit (4 rubber mounts, 4 washers and 4 ¼” nuts)
• 1 protection cover for the FT600 ECU
• 1 FuelTech FT600 exclusive badge
• 1 USB flash drive (containing the FTManager softwares and guides)
• 1 mini USB cable
• 1 promotional kit (including a pen, a keychain and a sticker kit)

Warranty

• 1 year
FT600 Manual

FTManager Download Page

View full product details »

Billet Atomizer Injectors

$ 172.00

Type

Quantity

Continue Shopping or View Cart

When it comes to fuel injector performance, Billet Atomizer Racing Injectors are the top of the line. From small tire racing to Outlaw Pro Mods that run 270+mph, we utilize...

View full product details »

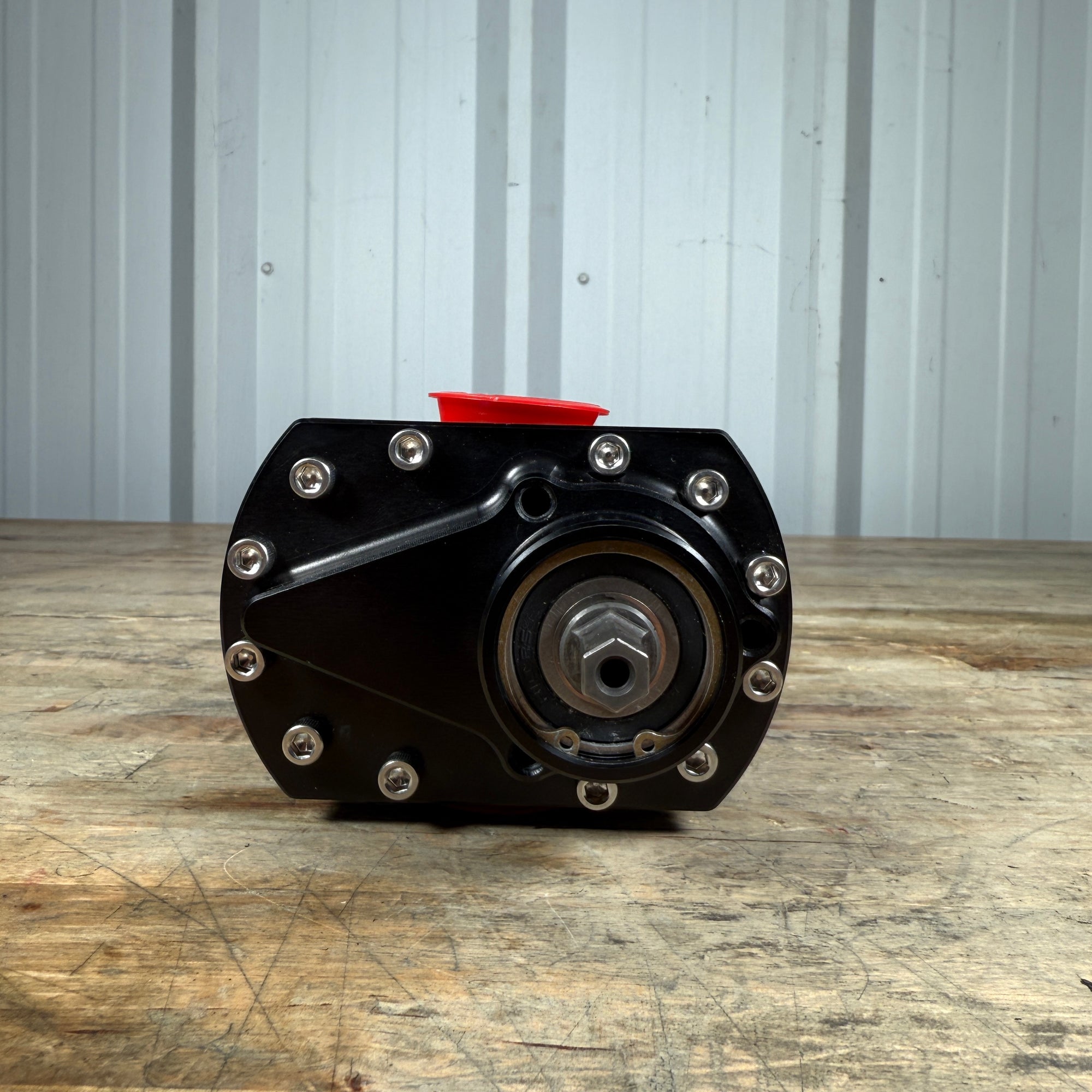

TURBOWERX EXA-PUMP 12V - ELECTRIC OIL SCAVENGE PUMP

$ 399.00

Description
Specifications

The TurboWerx Exa-Pump is the ultimate achievement in high-temperature, high-reliability pump technology. This pump was designed from the ground up to handle the most extreme conditions found in any motor vehicle, with a special emphasis on turbocharger oil scavenging applications. Built on extremely rugged spur gear technology, there is simply no other pump that can be compared to this hi-temp, 10,000 hour continuously rated pump. Aerospace/military-grade quality and available at an affordable price.

*The #1 cause for pump failure is ingesting foreign debris. Gear pumps of any brand are especially susceptible. TurboWerx offers a several filter solutions to prevent this.
350F (175C) Fluid Temperature

2-3GPM Scavenge Pump Rate depending on oil temperature/viscosity, 50+ PSI continuous as Pressure Pump

Self-prime greater than three feet.

Hardened Bronze Gear Pump Rotors

10,000 Hour Rated Dual Hybrid Ball Bearings

10,000 Hour Rated Over-sized Brushes

Highest Rated Temperature (class H or higher) Insulated Copper Motor Windings

Black Anodized Extruded Aluminum Bracket/Heatsink

Nickel-plated Pump Head

Stainless Steel Pump Head Fasteners

3/8" NPT Female Threaded Pump Head Ports

Set of two 3/8” NPT -> AN Nickel-plated Adapters Included

High-Temperature Power Wiring

Weatherproof Connectors

Rubber-isolated Mounting Bracket

Low-vibration, Quiet

6 lbs Total Weight, 3” Diameter Motor

Reversible Pump Flow via Power Polarity Reversal

Not designed for use as a fuel pump

Warrant void if 350F (175C) rated temperature is exceeded.

Rated voltage may be exceeded by up to 25%. Warranty void if applied voltage exceeds 25% of rated voltage as labeled.

Operating Current: 12 VDC version is <5A, 20A maximum. Pump MUST be protected by circuit breaker or fuse - 12V pump 20A. A fuse or circuit breaker will protect the pump from permanent damage in case of rotor-lock from ingesting foreign debris. When the temperature of the oil is very low, the oil’s viscosity is much greater, and the pump will consume more current until the oil warms up. The fuse or circuit breaker current value takes into account the additional current needed for pumping oil at low temperatures. As a pressure-pump, the pumps are rated min. 50PSI. Exceeding any of these ratings will void warranty. (50-75PSI operation range is possible, but not guaranteed or warranted).

Two-year Warranty - warranty void if pump is modified, or current ratings exceeded. Warranty only for genuine TurboWerx products purchased from Pro Line Racing. No user-serviceable parts within the pump, warranty void if pump is opened. Do not remove or replace ANY fasteners.

View full product details »

Kool Solutions Transmission Cooler

Sold Out $ 2,499.99

When it comes to cooling the transmissions in our 4000+hp turbo Pro Mods and Outlaw Drag Radial cars between rounds, we trust Kool Solutions to handle the job while we prepare...

View full product details »

TURBOSMART POWERGATE 60 WASTEGATE, 5PSI, BLACK

$ 581.17

60mm external wastegate. With a superior flow path and high temperature resistance the Power-Gate60 is a market leader in its sector, outperforming all similarly sized wastegates. The shielded diaphragm housing...

View full product details »

TURBOSMART POWER PORT BLOWOFF VALVE, BLACK ANODIZED

$ 404.99

The Power Port is Turbosmart’s largest and highest flowing blow-off valve ever, resetting the flow benchmark set by their popular and highly regarded Race Port BOV. Designed to be as...

View full product details »

TURBOSMART RACE PORT BLOWOFF VALVE, BLACK ANODIZED

$ 276.74

The largest and the highest-flowing BOV in the Turbosmart range has just been redesigned and now features our unique collar design. 46% lighter and 25% smaller than the product it...

View full product details »

Davis Technologies "Bump Box"

$ 449.00

The "Bump Box" has totally transformed the way many drag racers stage their cars. By controlling the trans brake with a high speed micro processor, the car can be bumped into...

View full product details »

M&M SHIFTER, 3 SPEED REVERSE PATTERN WITH CLEAN NEUTRAL - ALL BLACK

$ 799.94

If you are looking for the ultimate shifter for drag racing, look no further. This shifter, made by M&M Transmissions is truly a work of art! M&M Transmissions is well...

View full product details »

PRECISION PERFORMANCE KWIKSHIFT-1 AIR SHIFTER POWERGLIDE 2 SPEED PUSH PATTERN, REAR CABLE EXIT, BLACK - Pro Line Racing

PRECISION PERFORMANCE KWIKSHIFT-1 AIR SHIFTER 2 SPEED PUSH PATTERN, REAR CABLE EXIT, BLACK

$ 415.00

Precision Performance Products make some of the best shifters out there and we have used their air shifters in our customers' cars for years without issues. We now have these...

View full product details »

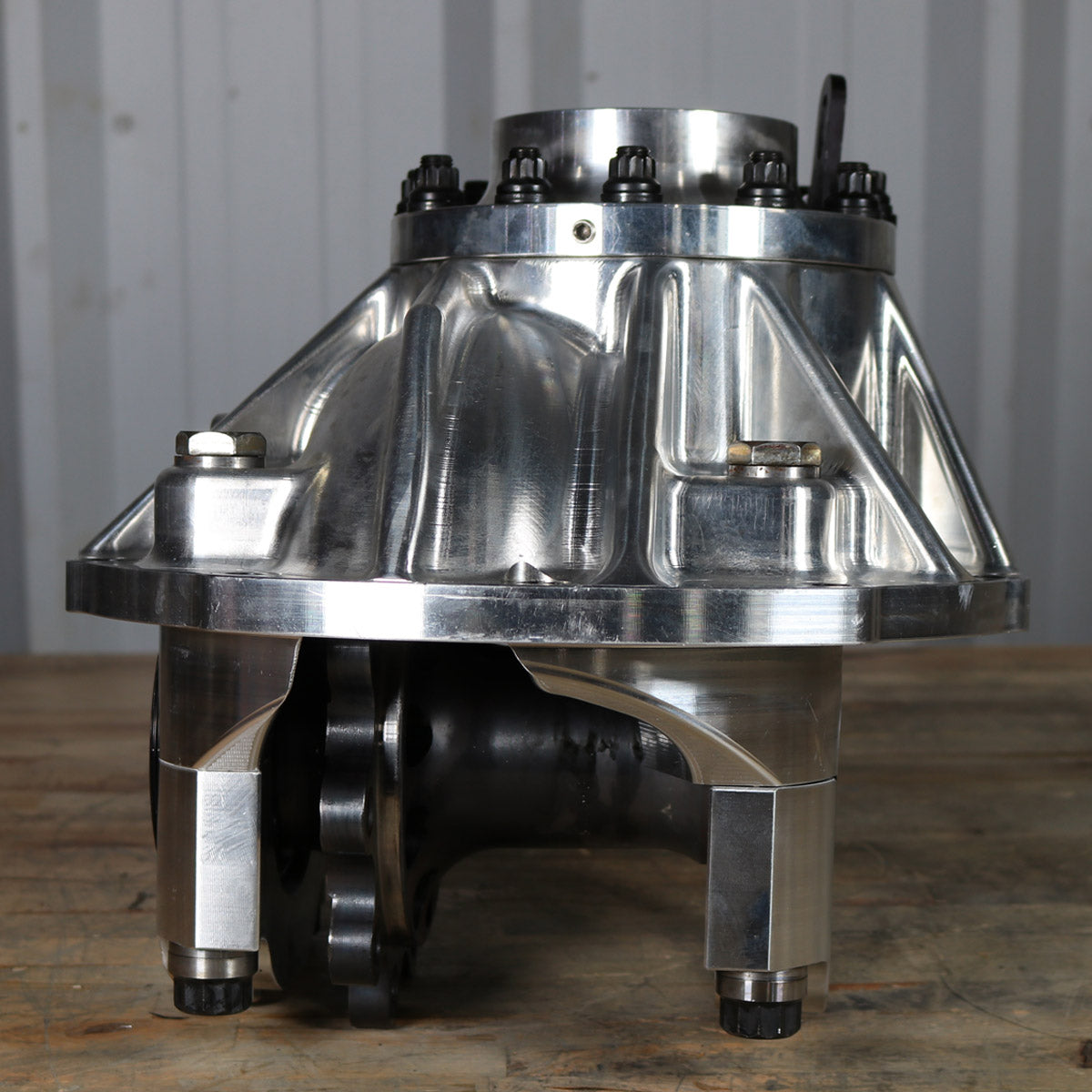

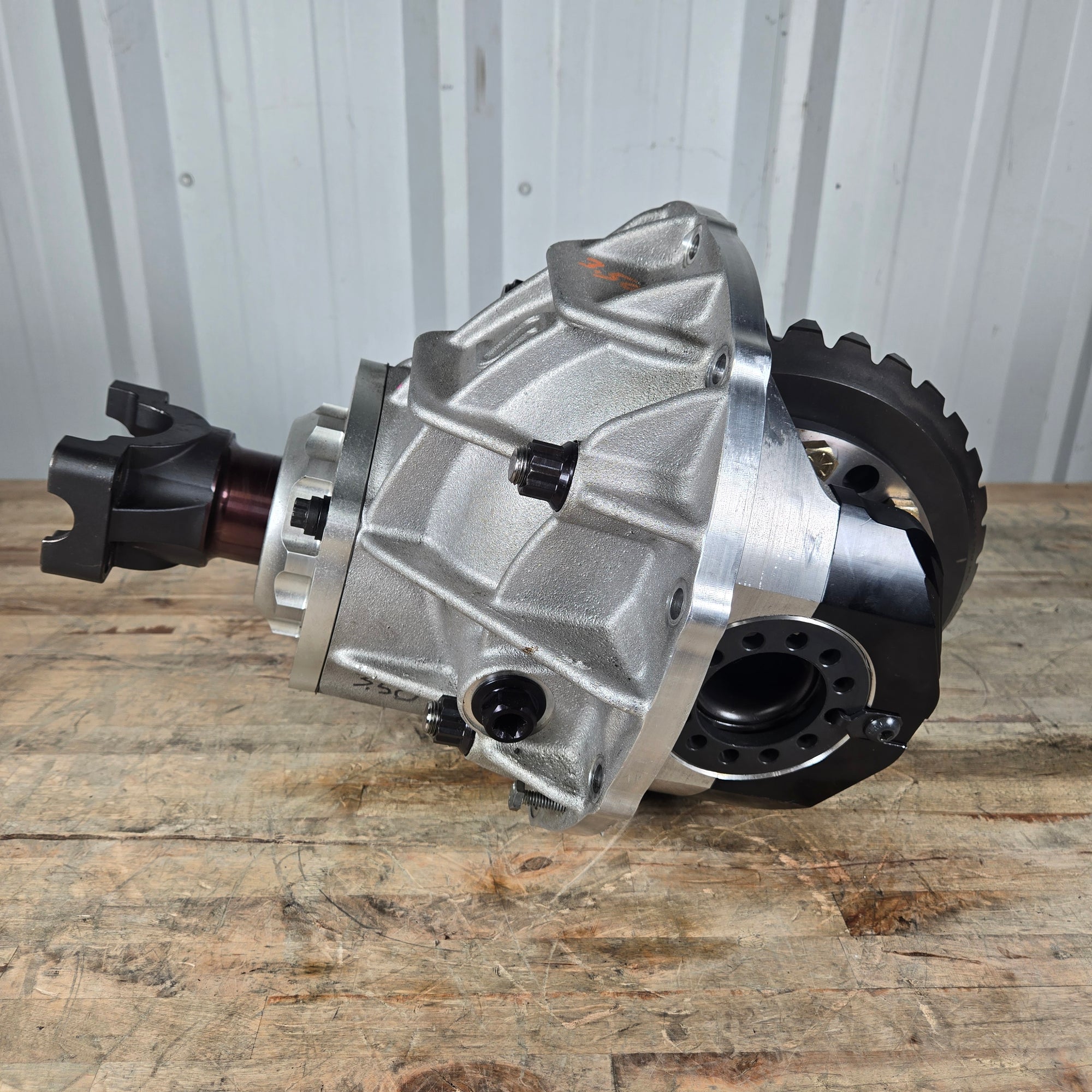

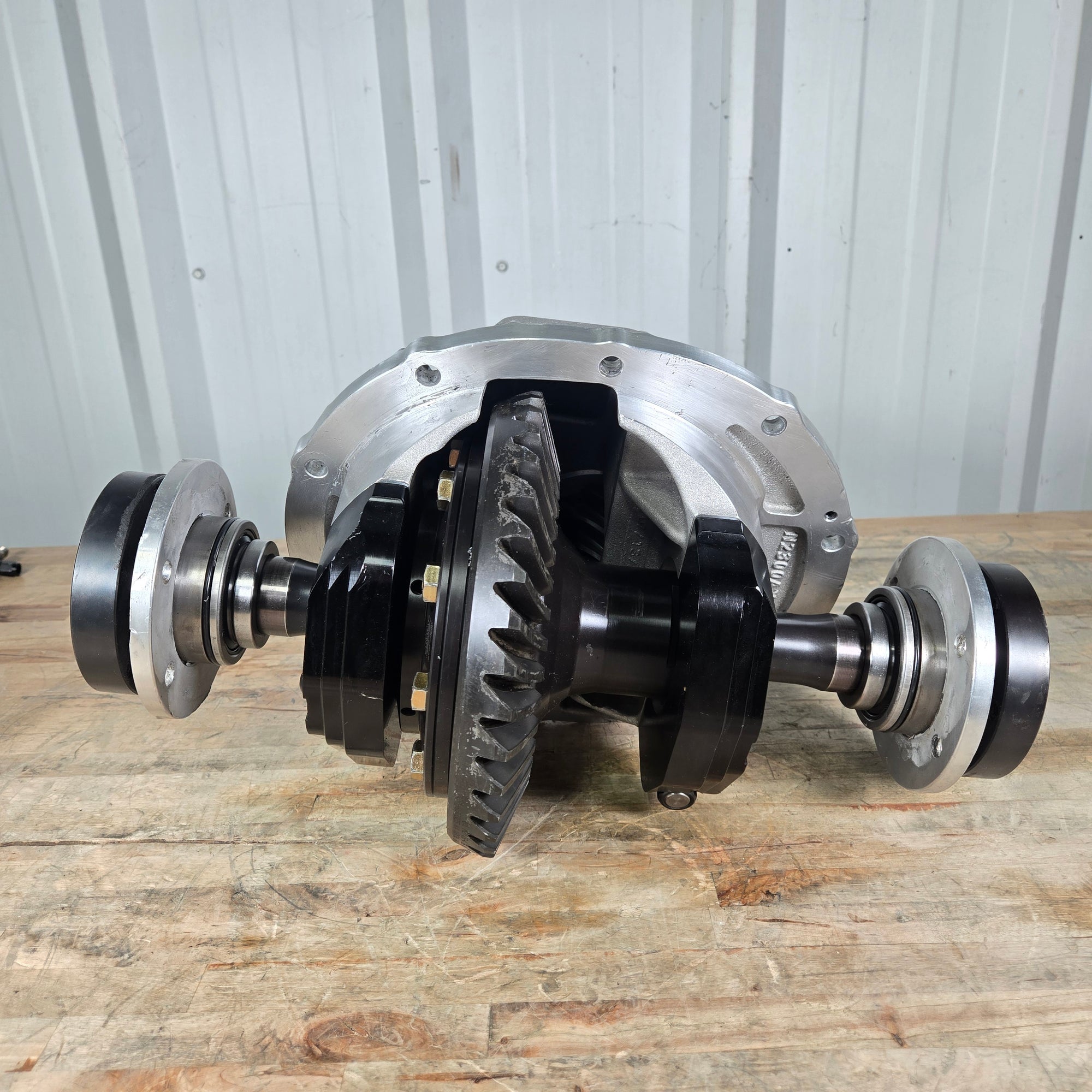

Carson Innovations Billet Aluminum Third Member Case

$ 3,190.00

Designed for existing 9" ford rear end housings utilizing a 10" ring and pinion. Some exclusive features that separate this housing from others on the market are: Positively located...

View full product details »

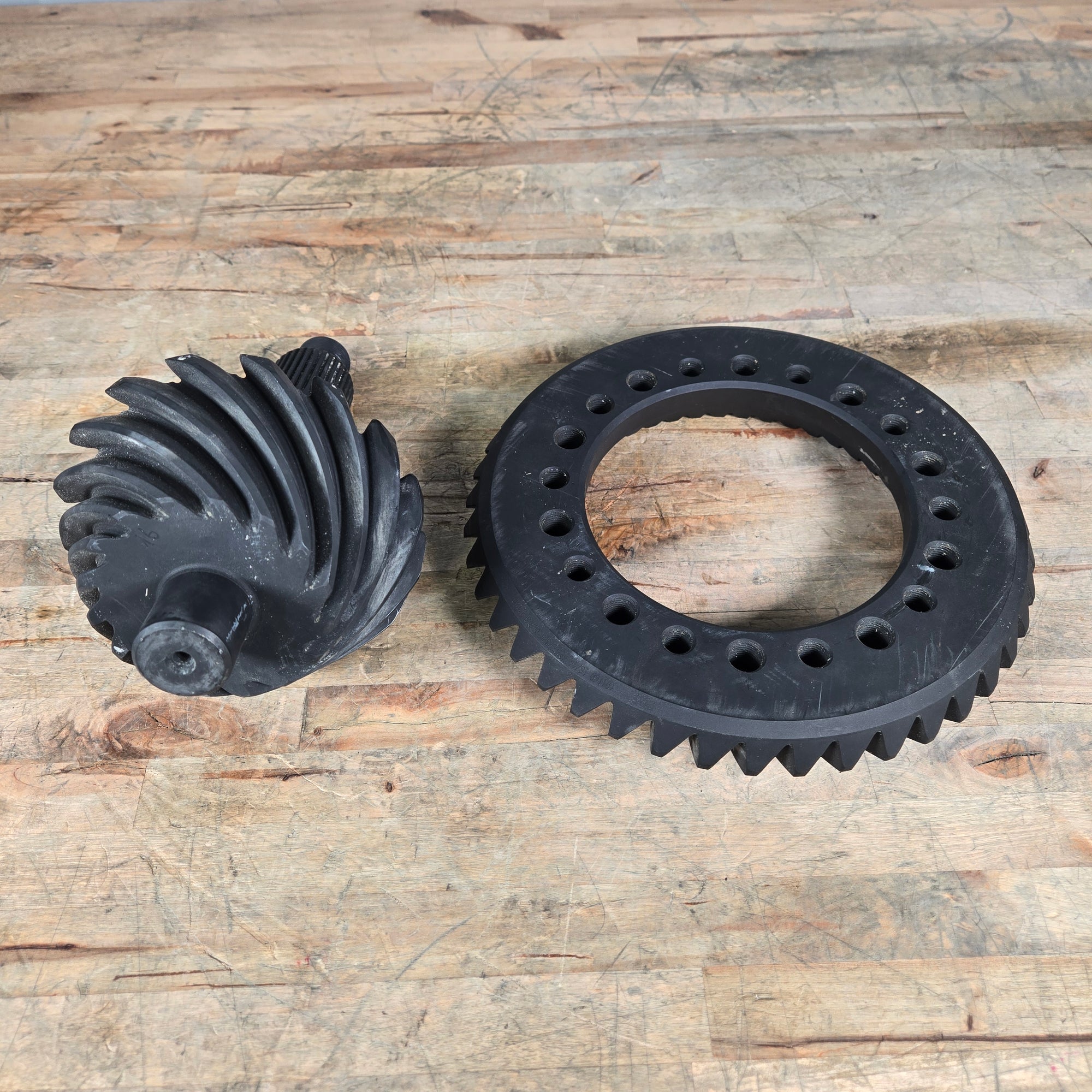

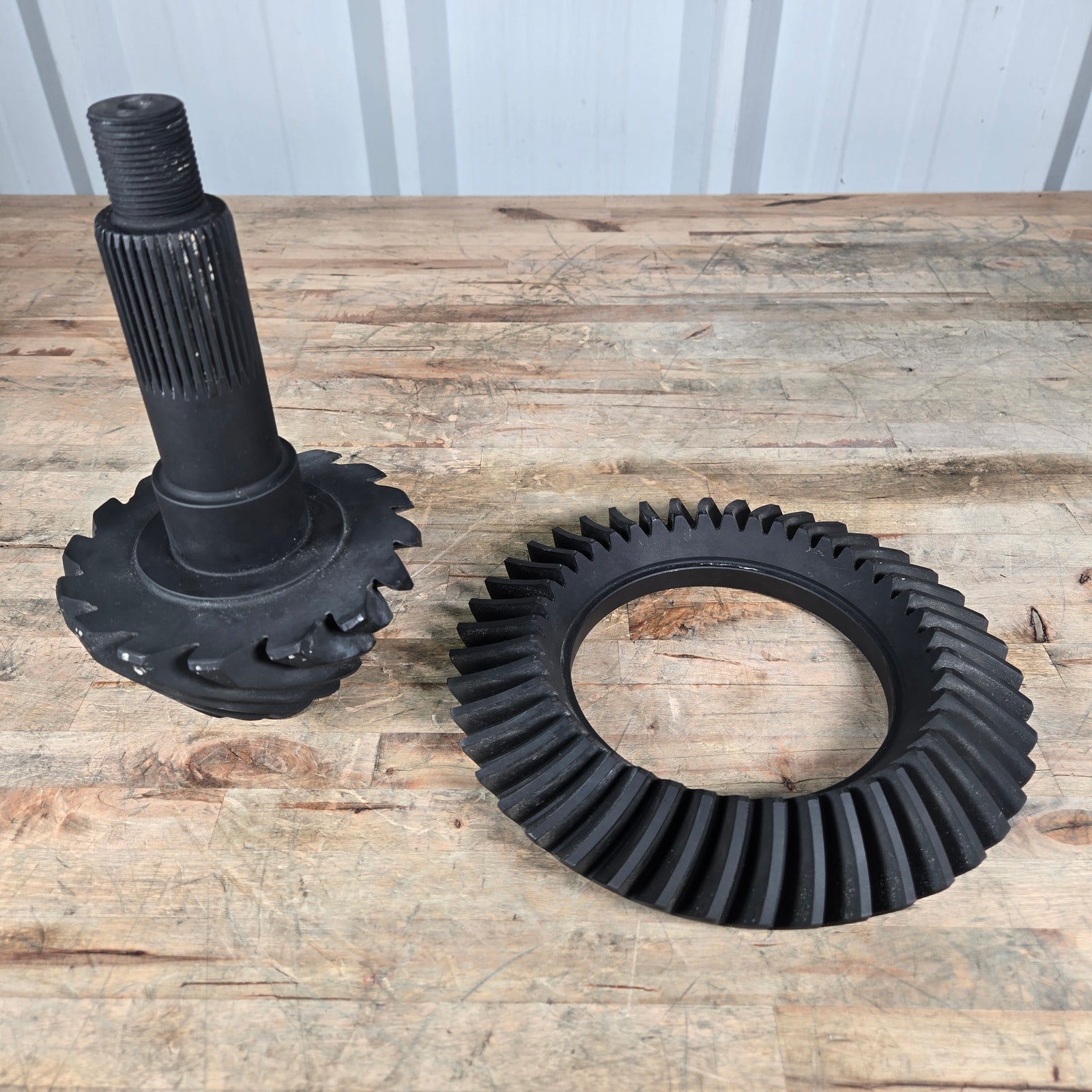

US GEAR 10" RING AND PINION SET
