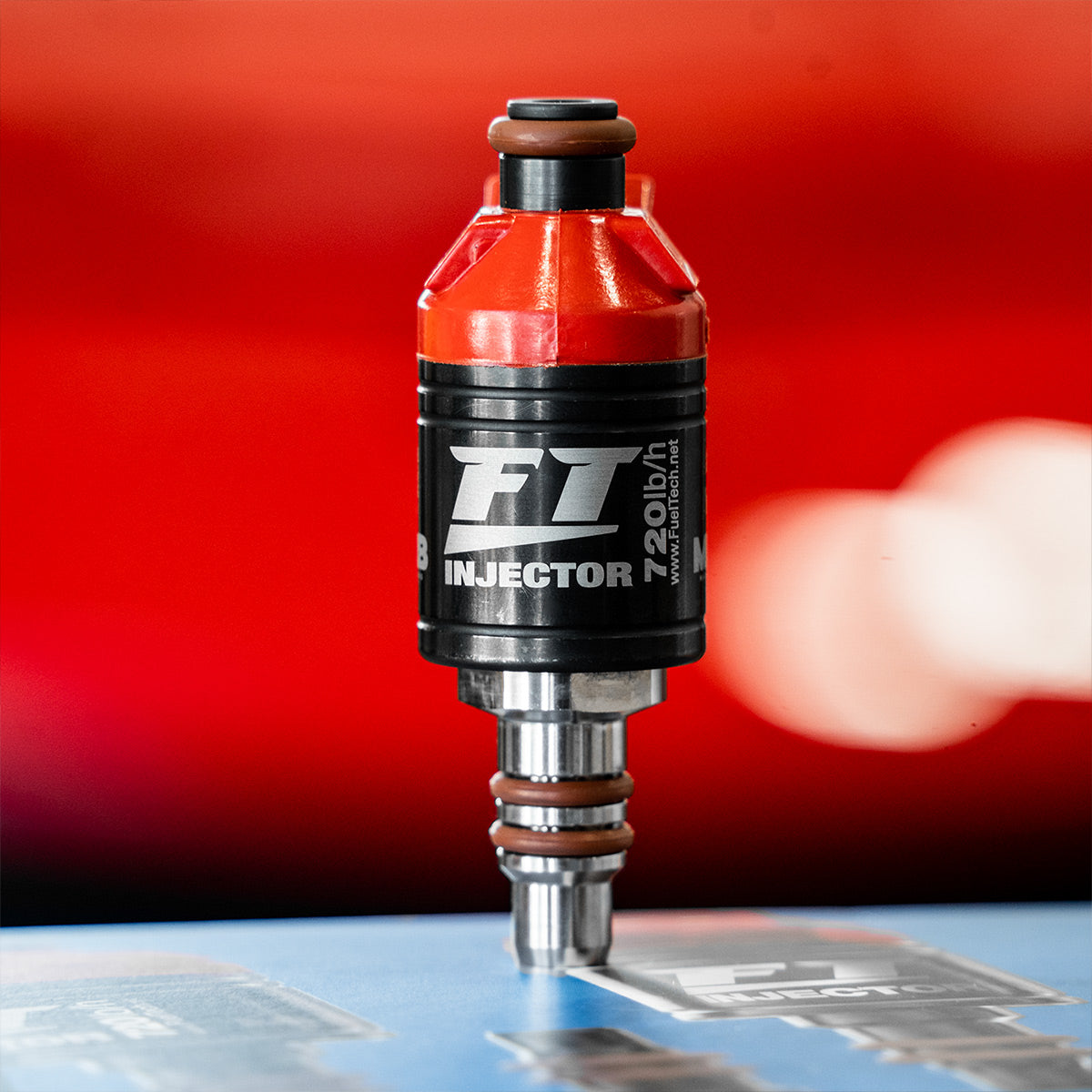

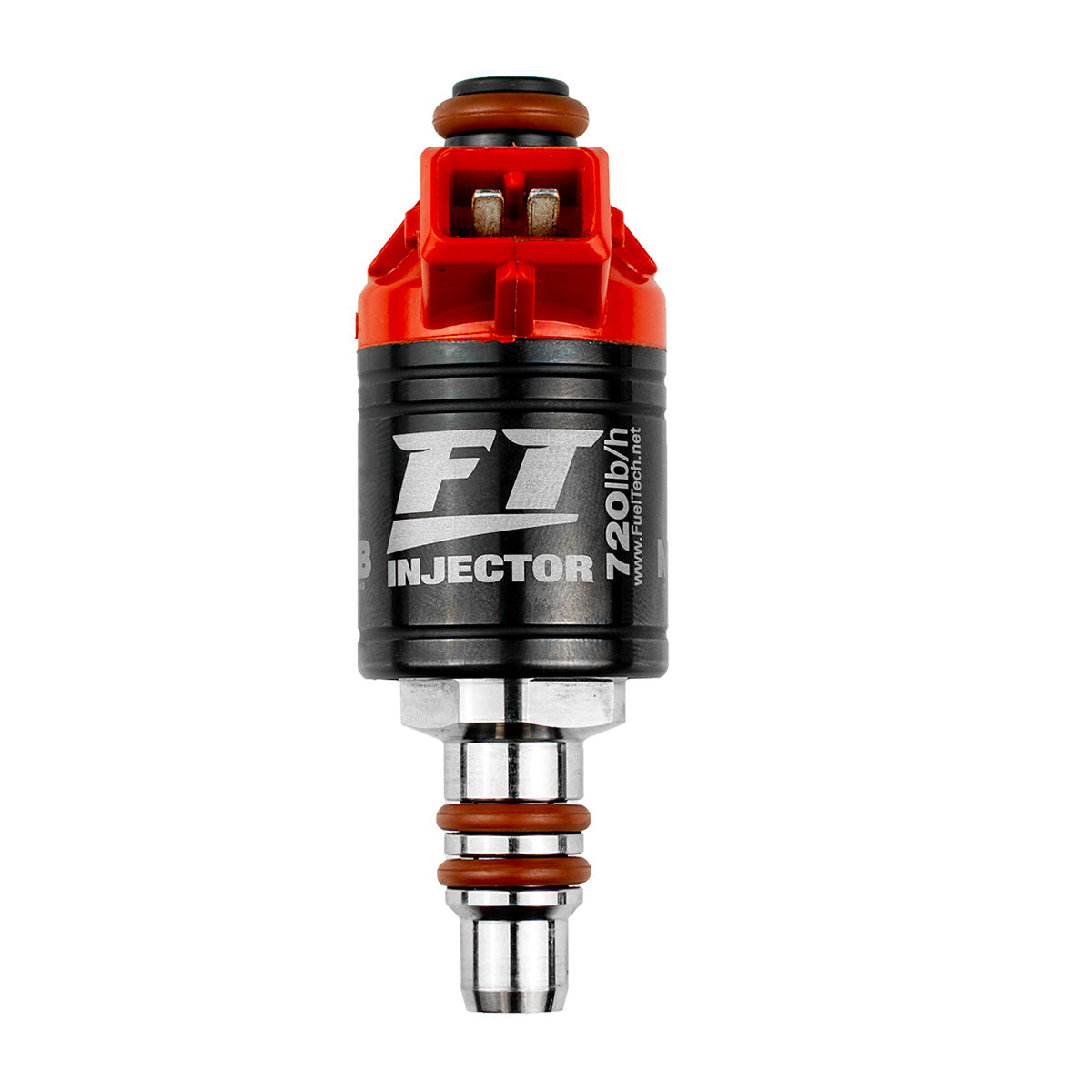

FUELTECH FT INJECTORS

Type
  • The FT Injector is available in two versions of 520 lb/h (~5,000cc/min) and 720 lb/h (~7,000cc/min) at 90psi base fuel pressure. Can be used as low as 30psi base fuel pressure flowing 301lb/h and 422lb/h respectively and up to 130psi base fuel pressure flowing 614lb/h (~5,800cc/min) and 860lb/h (~8,200cc/min) respectively.

    Each FT Injector is made with the best available materials, including internal components resistant to corrosion, allowing them to be used with any fuel, from gasoline, ethanol to nitromethane, nitropropane and even fuels containing MTBE and ETBE. EV1 type connector for positive locking and high vibration resistance.
  • Specifications

    • Compatible with any type of fuel
    • Low impedance (requires 8A/2A injector driver)
    • Voltage: 12V to 24V
    • Coil resistance 1.5 Ohms

    Dimensions:

    • Module: 3.39 x 1.26 inches
    • Packaging: 8.78 x 6.38 x 2.36 inches

    Contents of packaging:

    • 1 FT Injector(s)
    • 1 Owner's manual

    Warranty:

    • Worldwide: 1 year

  • FT Injector Manual PDF
