FRESH PLR 564CI MH7 OUTLAW RAISIED CAM HEMI ENGINE

"> $ 69,500.00

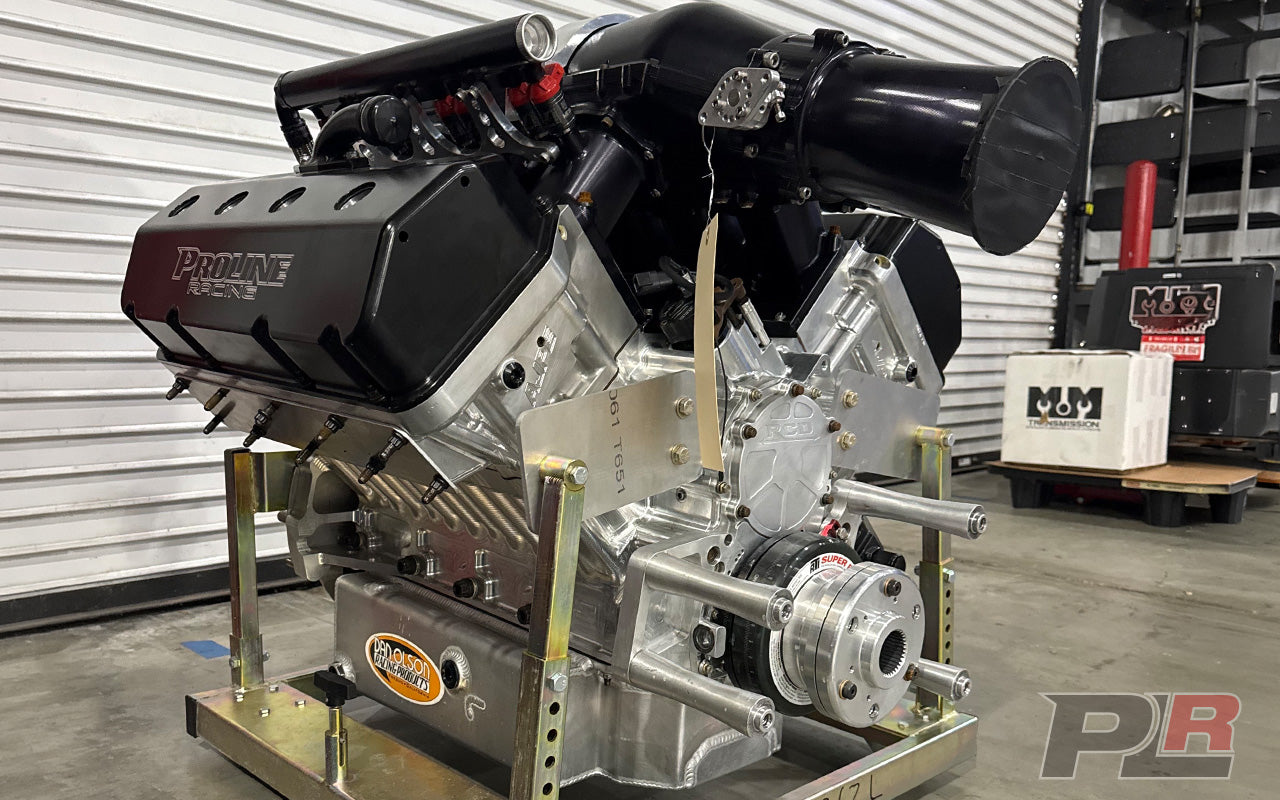

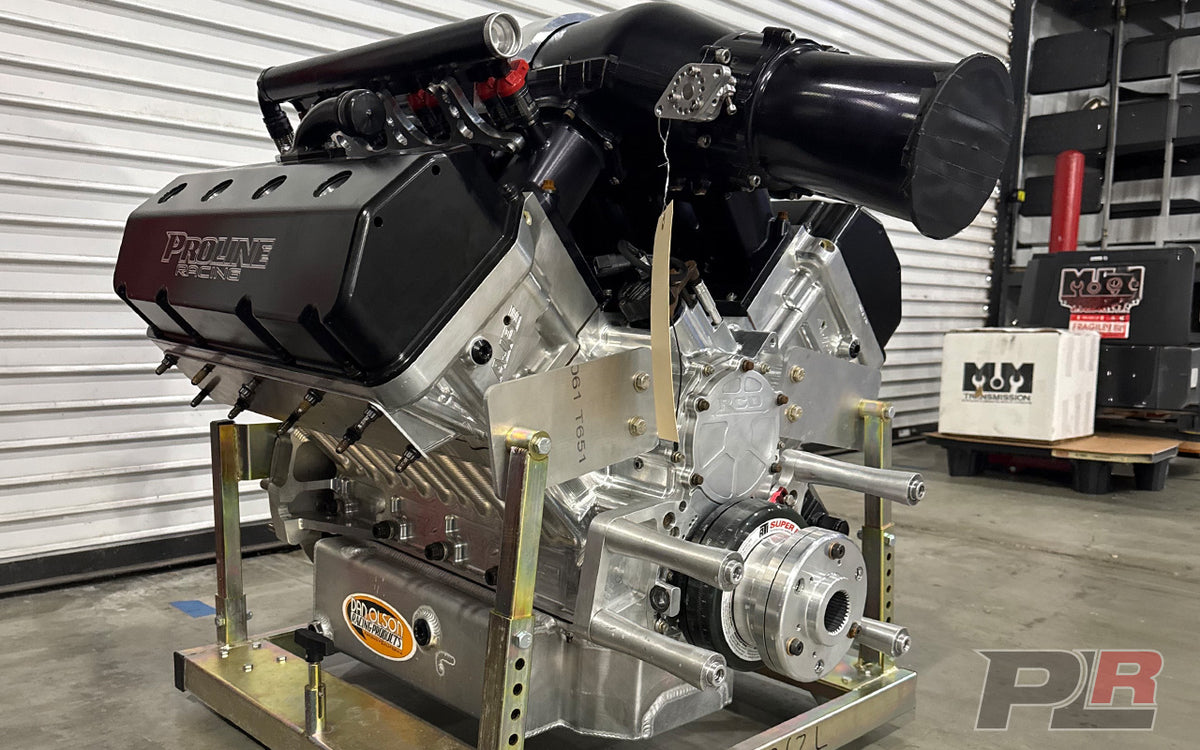

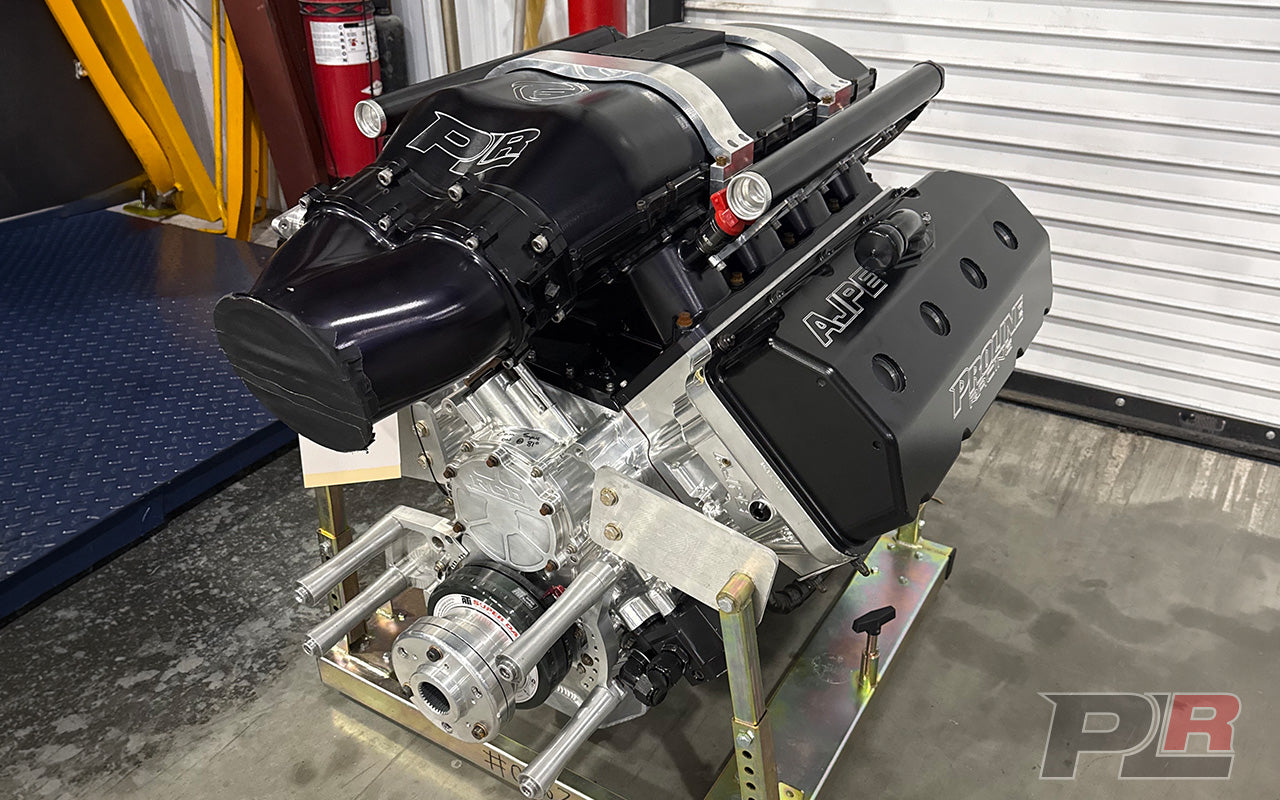

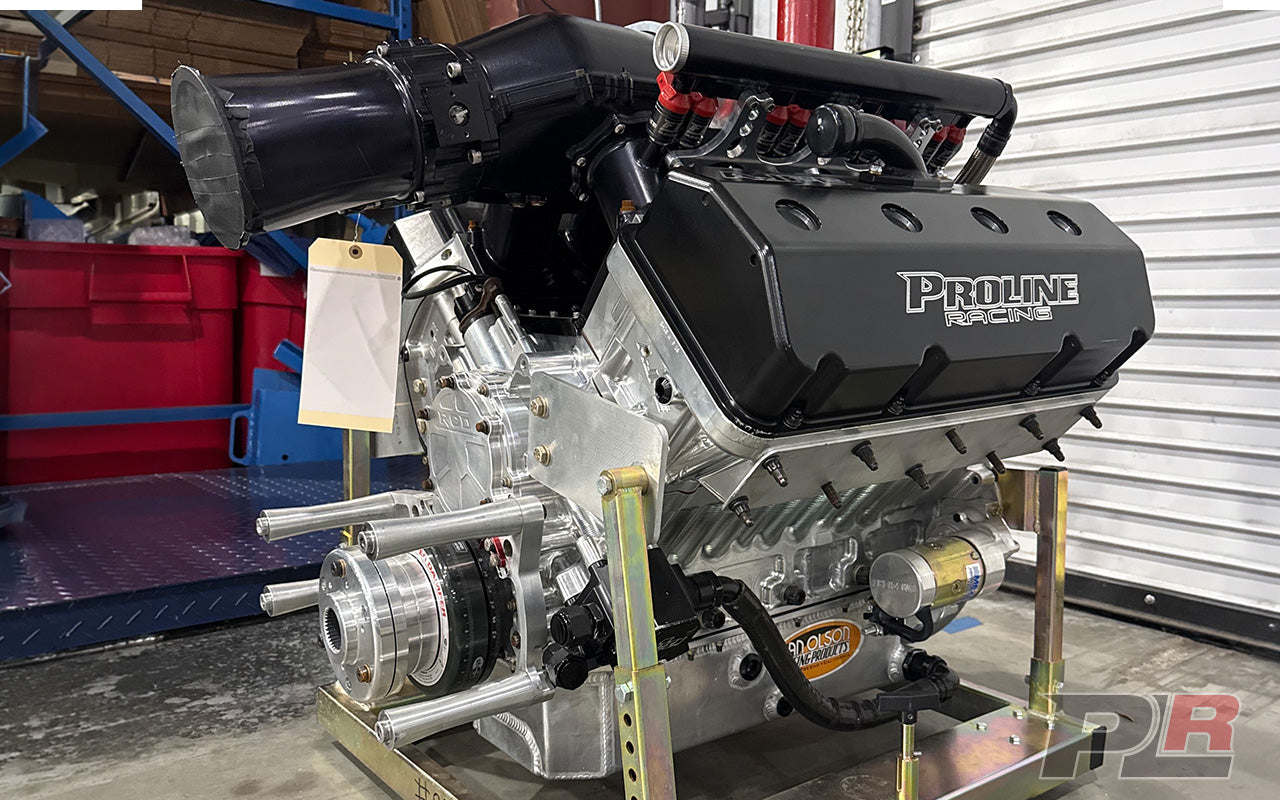

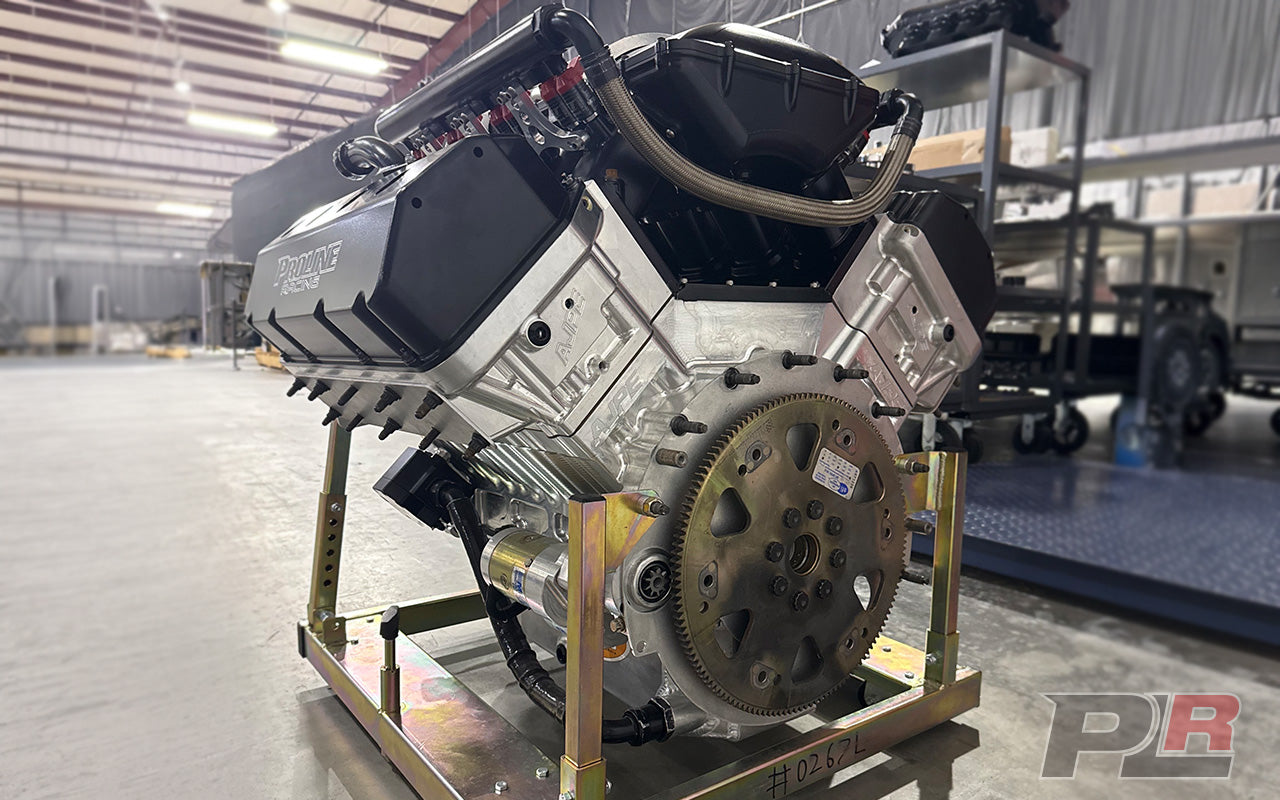

Up for sale is a fresh PLR 564ci MH7 Outlaw Raised Cam Hemi, built by Proline Racing. This is an AJPE 4.8 bore space MH7 Hemi combination with a Winberg crankshaft, GRP rods, Diamond pistons, Jesel bushed lifters, Reid rockers, AJPE MH7 Outlaw cylinder heads, Victory 1 titanium valves, PSI springs, Frankenstein intake, PLR billet valve covers, and a Moroso wet sump oiling system. The engine also includes a used Meziere starter and flexplate, along with 16 used/fresh FuelTech 720 injectors.

This engine previously suffered a rod failure that windowed the block. The block was repaired in-house at Proline Racing, and the sleeve layout has been documented as part of the listing for full transparency. See last image to see window repair. Cylinders #1, #2, and #4 currently have standard sleeves, cylinders #3 and #6 are .005" over, cylinder #8 is .015" over, and cylinders #5 and #7 are .020" over. The engine has since been freshened by PLR and is being sold with the repair history clearly disclosed so the next owner knows exactly what they are buying.

Engine:

Engine Builder: Proline Racing
Engine Type: PLR MH7 Hemi
Cubic Inches: 564
Bore Space: 4.8
Block: AJPE 4.8 Bore Space Raised Cam Hemi 2-Bolt Main, repaired in-house by PLR after previous rod failure.
- Sleeve layout:
  - #1, #2, #4 standard
  - #3, #6 .005" over
  - #8 .015" over
  - #5, #7 .020" over.
Crankshaft: Winberg (52 Runs)
Connecting Rods: GRP (New)
Pistons: Diamond (5 New & 3 Used w/ 52 runs)
Wrist Pins: Trend (2 New & 5 Used w/ 52 Runs)
Piston Rings: Total Seal (New)
Oil Pan: Moroso
Oil Pump: Moroso Wet Sump
Camshaft: Militia Tool Steel PLR Grind (52 Runs)
Lifters: Jesel Bushed (New)
Pushrods: Smith Brothers 2-Piece (52 Runs)
Rockers: Reid
Cylinder Heads: AJPE MH7 Outlaw
Valves: Victory 1 Titanium (18 Runs)
Valve Springs: PSI (18 Runs)
Valve Covers: PLR Billet
Intake Manifold: Frankenstein
Balancer: ATI

Additional Parts Included:

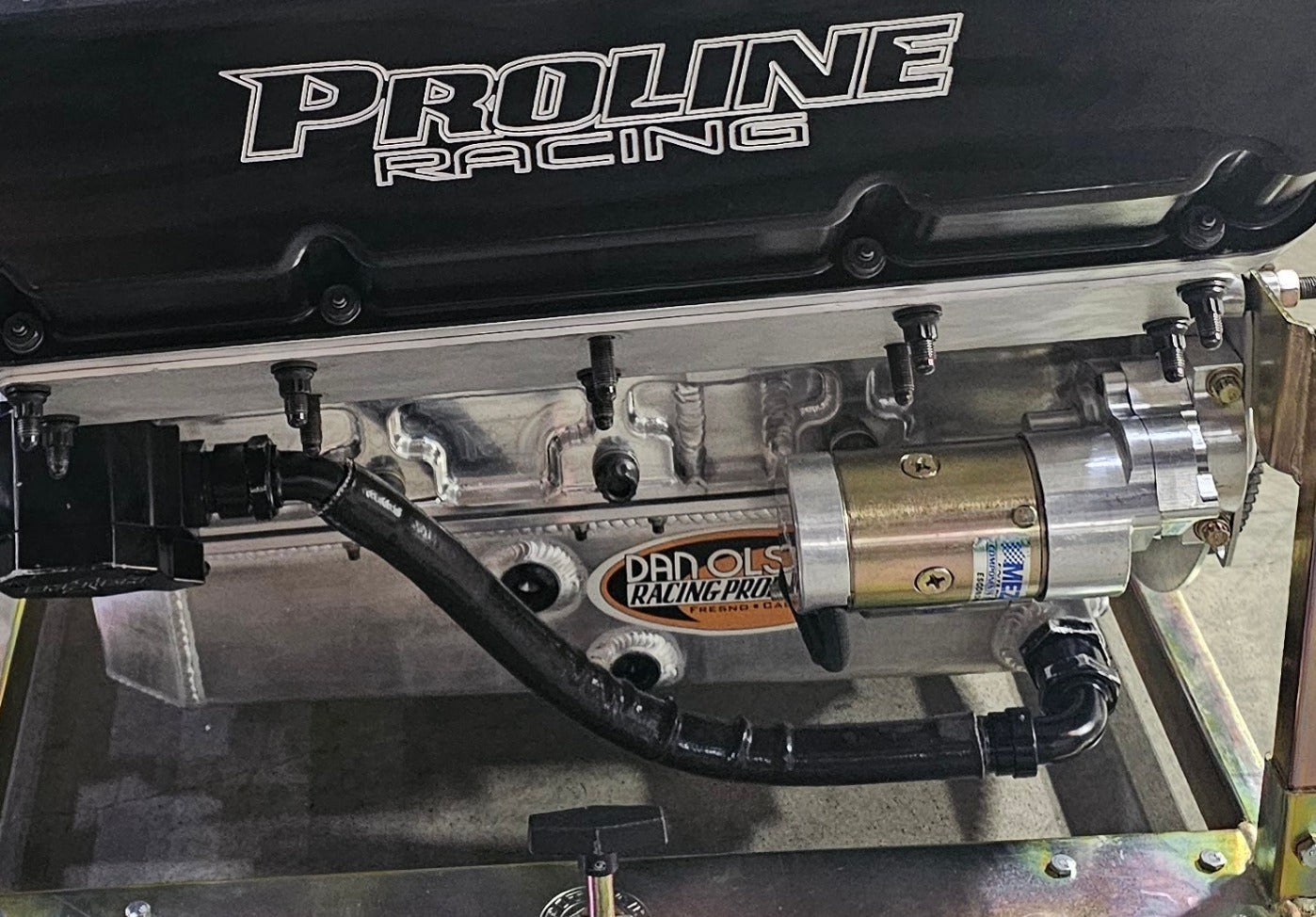

Starter & Flexplate: Mezeire - Used
Injectors: (16) FuelTech 720 Injectors - Used/Fresh

Price: $69,500

Please reach out to Eric at 770-231-2993 or contact us with questions.
