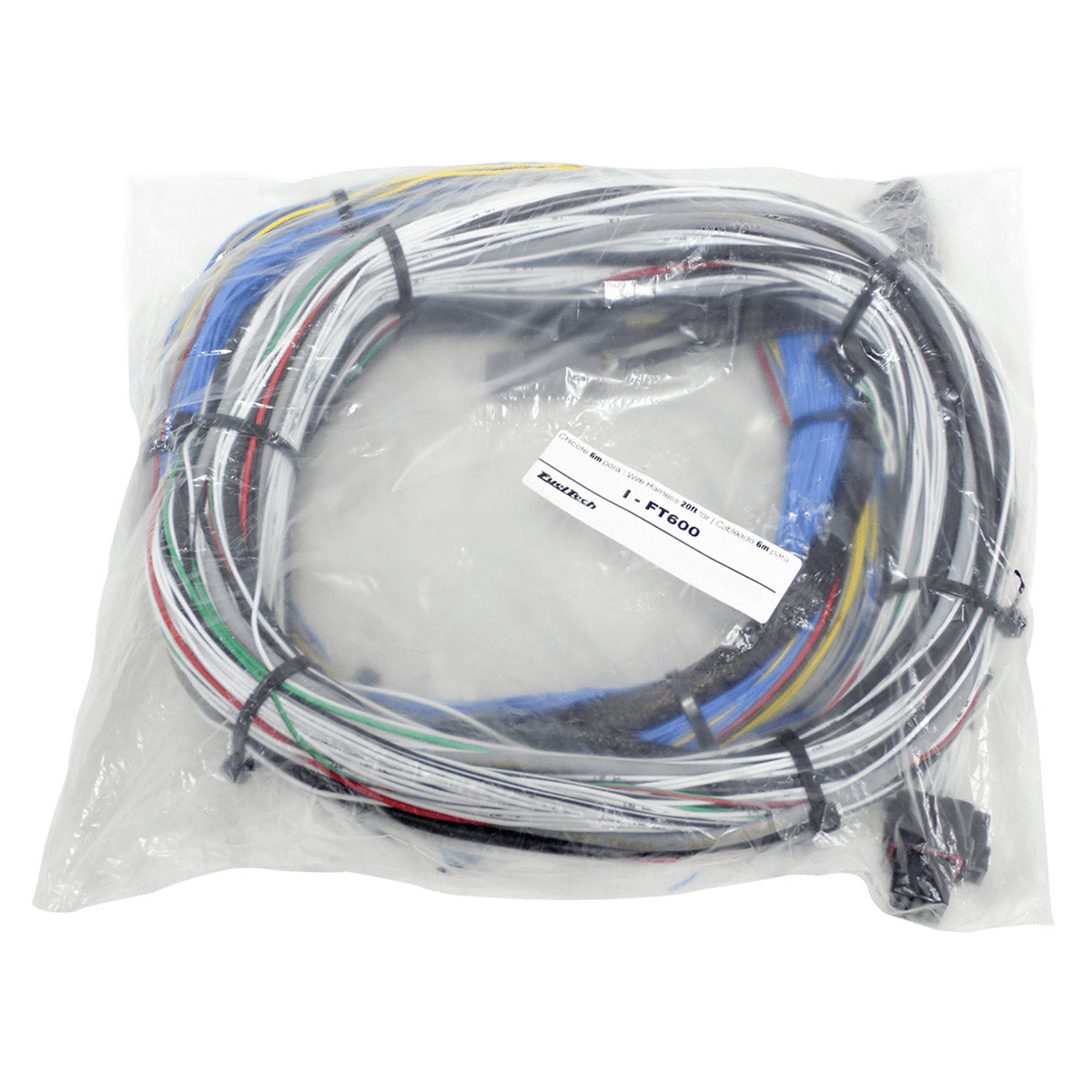

FUELTECH FT600 UNTERMINATED HARNESS


  • FT600 unterminated harness is used when wiring everything from scratch

    This harness consists of FT600 A and FT600 B, each one with 10 or 20 foot wires and nylon sleeve finishing.

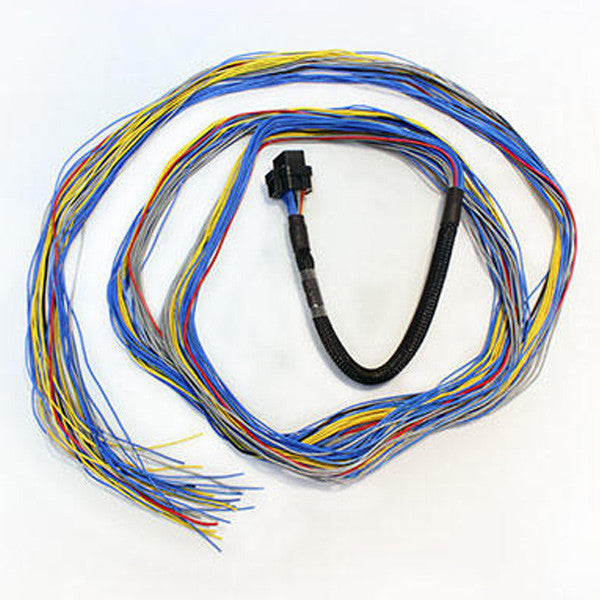

  • - FT600 A connector:

       1 FT600 A SUPERSEAL 34 ways connector
    16 blue outputs (0,50 m2)
    8 gray outputs (0,50 m2)
    8 yellow outputs (0,50 m2)
    2 power supply inputs (1,00 m2)

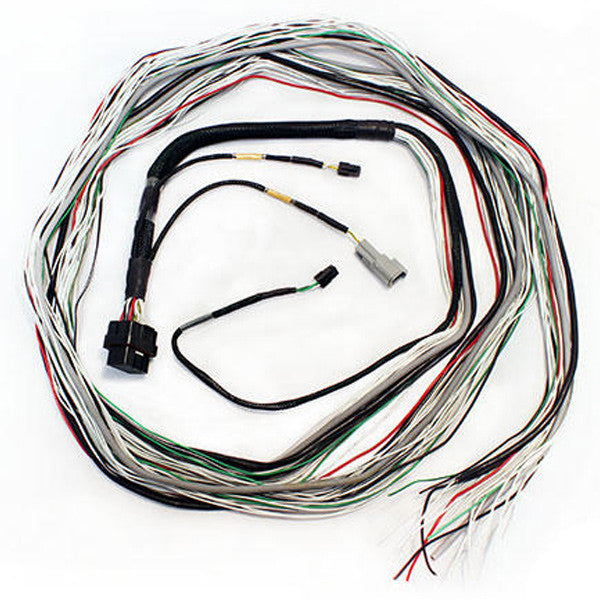

    - FT600 B connector:

       1 FT600 B SUPERSEAL 34 ways connector
    18 white inputs (0,50 m2)
    2 white inputs with twisted pair cable with shift lever connector (0,50 m2)
    1 CAN-A 4-way connector (0,50 m2)
    1 CAN-B 2-way connector (0,50 m2)
    2 differential inputs with shielded twisted pair cable for RPM sensor
    2 differential inputs with shielded twisted pair cable for cam sync sensor
    2 sensor supply outputs (0,50 m2)
    4 power supply inputs (1,00 m2)
