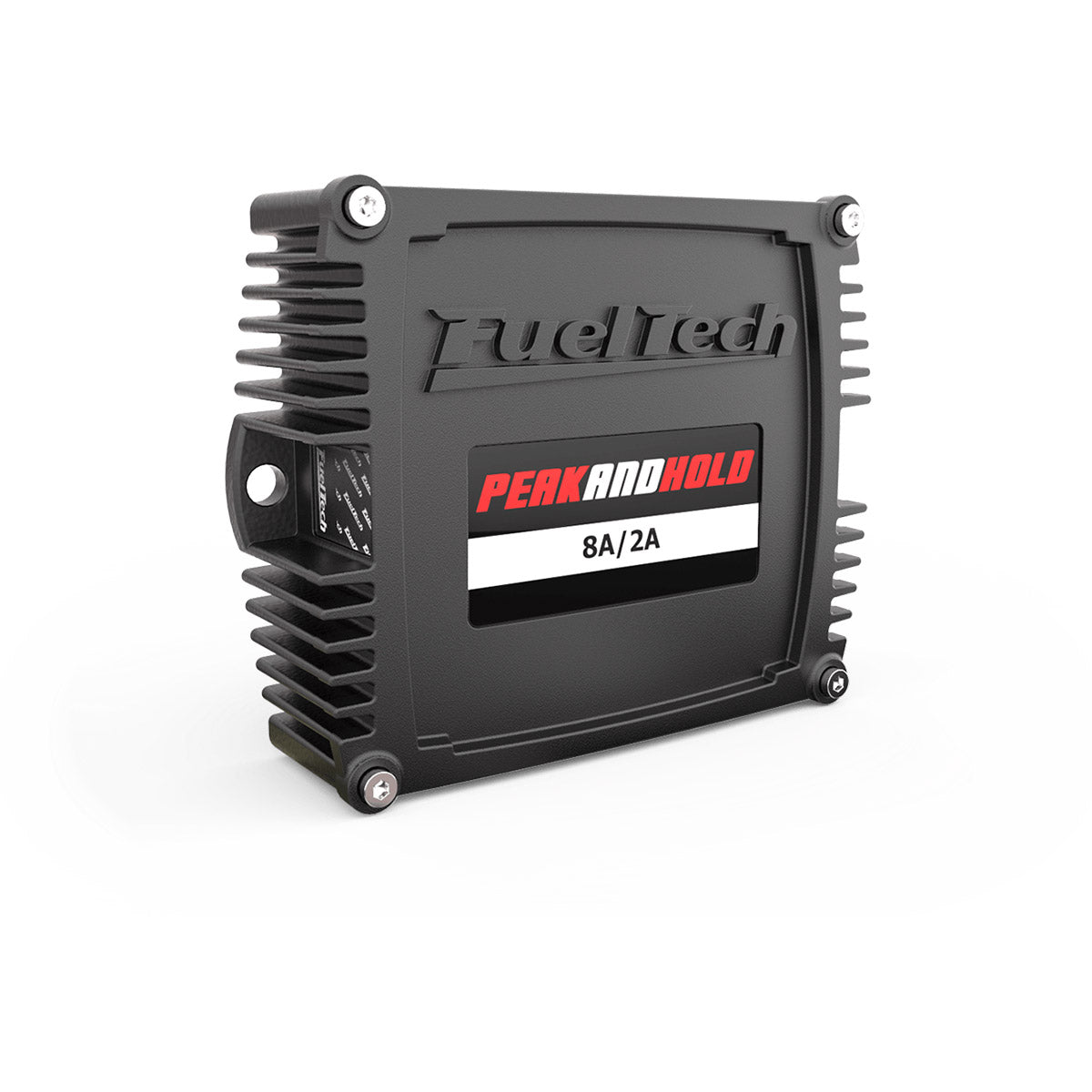

FUELTECH PEAK & HOLD INJECTOR DRIVER


  • Current control driver for low impedance injectors
  • 4 channels
  • Available in three current versions
    • 2A/0.5A
    • 4A/1A
    • 8A/2A
  • Available with or without 6 foot blank harness. You will only need this harness if you are building a custom wiring harness for your system.

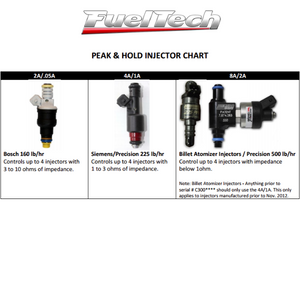

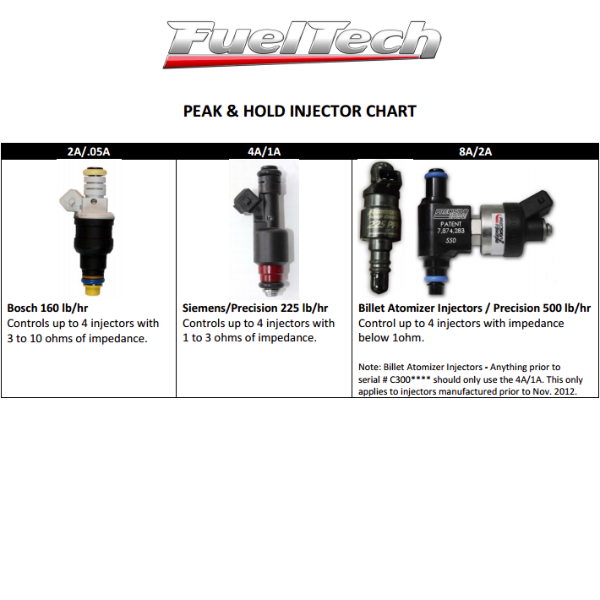

       Specifications

      Peak and Hold 2A/0.5A

      • Controls up to 4 injectors with 3 to 10 ohms of impedance.
      • 4 Bosch 160lb/h (1600cc) injectors

        Peak and Hold 4A/1A

        • Controls up to 4 injectors with 1 to 3 ohms of impedance.
        • 8 Bosch 160lb/h (1600cc) injectors (2 per channel)
        • 4 Siemens 83lb/h injectors
        • 4 MSD injectors (with 2 ohms impedance per injector)

          Peak and Hold 8A/2A

          • Controls up to 4 injectors with impedance below 1 ohm
          • 16 Bosch 160lb/h (1600cc) injectors (4 per channel)
          • 8 Siemens low impedance injectors (2 per channel)
          • 4 MSD low impedance injectors (2 per channel) (with 2 ohms impedance per injector)

            Dimensions: 4.53" x 3.54" x 1.30"
